| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 172704-0172 |
| Gender: | Female |
| Housing Material: | Steel |
| Number of Contacts: | 25 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel |
| Insulation Material: | Polybutylene Terephthalate |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7.5 A |
| D-Sub Shell Size: | S3 |
| Operating Temperature: | -55 to 125 °C |
| Mounting Angle: | Straight |
| Mounting Type: | Panel Mount |
| D-Sub Connector Type: | Standard |
| SKU: | MOL172704-0172 |
172704-0172
| ICC Number: | MOL172704-0172 |
| Manufacturer: | Molex |
| Manufacturer Number: | 172704-0172 |
| ECAD Model: | |
Description:
FCT Standard-Density D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, 200 Mating Cycles, 25 Circuits, White Insulator
More >>Specifications
Detailed Description
Introducing the FCT Standard-Density D-Sub Connector, a reliable solution for your connectivity needs. This female connector features a straight orientation and solder cup termination method, with gold plating for enhanced conductivity and durability. Designed for longevity, it offers 200 mating cycles and accommodates 25 circuits with an amperage of 7.5 A. With a compact two-row design and IP20 rating, it ensures secure connections in various applications. Constructed with a steel shell and copper alloy contacts plated with gold over nickel, it guarantees reliable performance even in demanding environments. RoHS compliant and suitable for 20 AWG wire, the FCT Standard-Density D-Sub Connector is a versatile and high-quality choice for your projects.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 172704-0097 | FCT Metal Backshell for D-Sub Connector, Shell Size 2, 45° Angle Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws |  |
 | Molex 172704-0098 | FCT Metal Backshell for D-Sub Connector, Shell Size 2, Straight Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 172704-0159 | FCT Knurled Thumb Screw Lock, #4-40 Thread, 53.50mm Length, Nickel-plated Brass | |
 | Molex 172704-0160 | FCT Standard-Density D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, 200 Mating Cycles, 9 Circuits, White Insulator | |
 | Molex 172704-0166 | FCT Standard-Density D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, 200 Mating Cycles, 15 Circuits, White Insulator | |
 | Molex 172704-0170 | FCT Standard-Density D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, 200 Mating Cycles, 25 Circuits, White Insulator | |
 | Molex 173111-0276 | FCT Plastic Backshell for D-Sub Connector, Shielded, Shell Size 3, Straight Cable Outlet | |

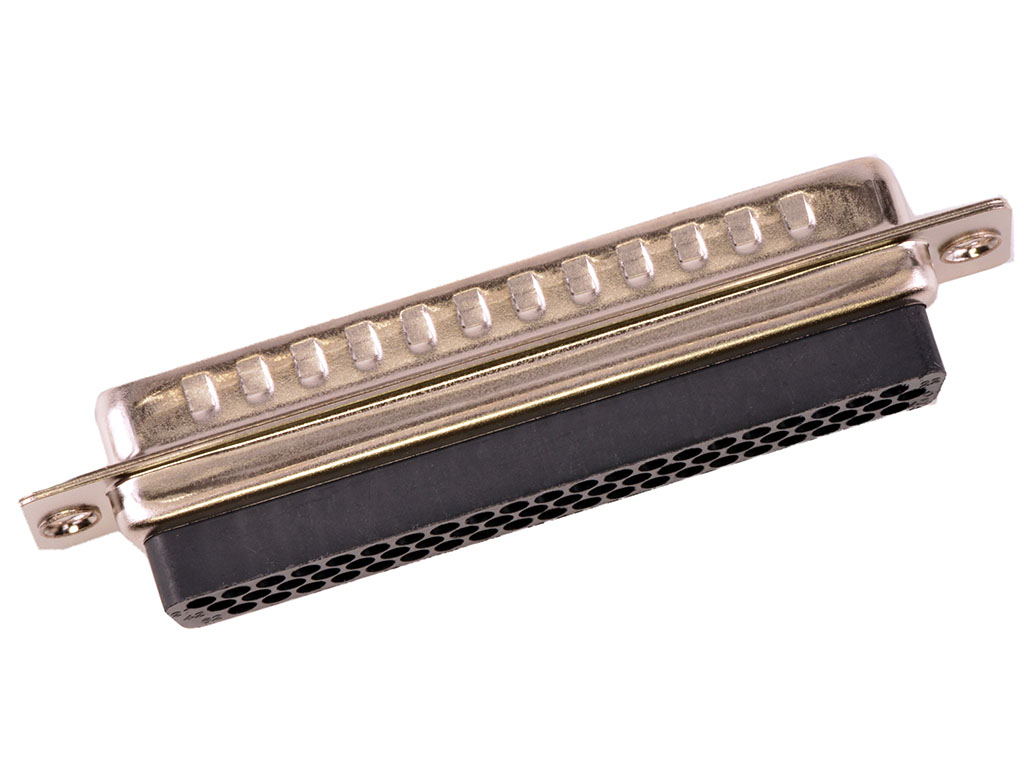

 | Molex 173113-0022 | FCT High-Density D-Sub Crimp Housing, Male, 62 Circuits | |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
