| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 172704-0149 |
| Series: | 172704 |
| Amperage: | 30 A |
| Gender: | Male |
| Termination Method: | Crimp |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel |
| Contact Type: | High Power |
| Orientation: | Straight |
| Operating Temperature Range: | -55 - 155 °C |
| Contact Mating Area Plating Thickness: | .8 µm |
| Mating Cycles: | 500 |
| Type: | Mixed Layout |
| Contact Termination Plating Thickness: | .2 µm |
| Wire Size: | 10 AWG, 12 AWG |
| Retainer Clip Material: | Copper Alloy |
| Product Name: | FCT Products |
| Part Aliases: | 1727040149 FMP053P103 |
| SKU: | MOL172704-0149 |
172704-0149
| Heilind Number: | MOL172704-0149 |
| Manufacturer: | Molex |
| Manufacturer Number: | 172704-0149 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the FCT High Power Contact, a crucial component for robust and reliable power transmission in demanding environments. This male contact, featuring a straight orientation and crimp termination method, is designed for secure and efficient connections. With 0.80µm gold plating over nickel, it ensures excellent conductivity and corrosion resistance, even in harsh conditions ranging from -55 to 155°C. Suitable for 10-12 AWG wires, this contact is rated for 30 A, making it ideal for high-power applications. Engineered for durability, it offers a mating cycle of 500, guaranteeing long-term performance. RoHS compliant and in stock, the FCT High Power Contact is a dependable solution for your power connector needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 172704-0001 | HPD Standard-Density D-Sub Plug Housing, Crimp, Panel Mount, 15 Circuits |  |

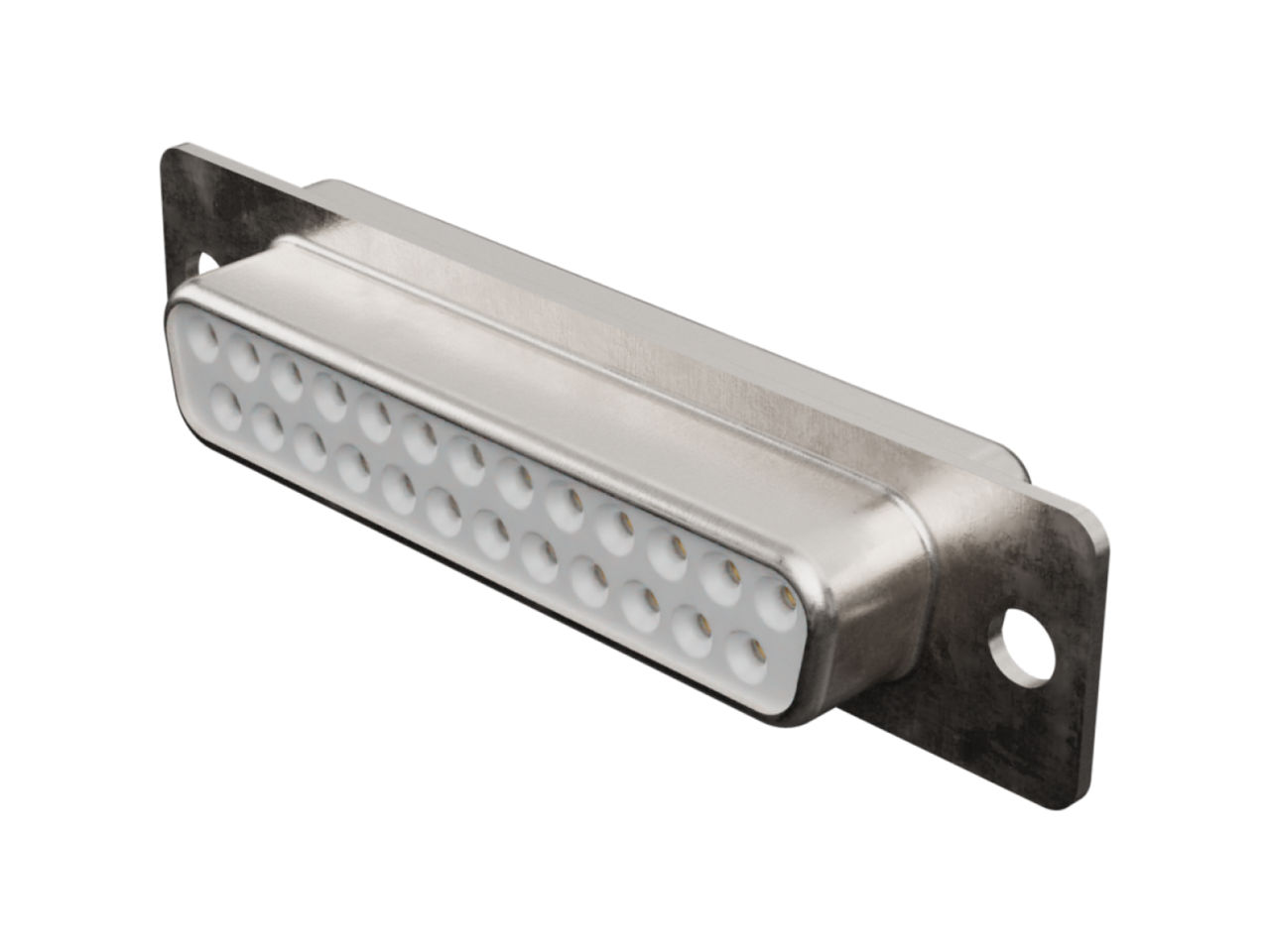

 | Molex 172704-0070 | HPD Standard-Density D-Sub Connector, Solder Pot, with Machined Female Contacts, Panel Mount, 25 Circuits | |
 | Molex 173112-0054 | FCT Coaxial Contact, Male, Straight, Solder Cup, 75 Ohms, 1.30µm Gold Plating, without Inspection Hole, for RG-179BU or RG-187AU Cable | |
 | Molex 173113-0021 | FCT High-Density D-Sub Crimp Housing, Male, 44 Circuits | |
 | Molex 173113-0071 | FCT High-Density D-Sub Crimp Housing, Male, 26 Circuits | |
 | Molex 51021-0900 | 1.25mm Pitch PicoBlade Wire-to-Wire and Wire-to-Board Housing, Female, 9 Circuits, Natural | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 07/15/2023 | 513774 - Packaging Method/Quantity Changing. The purpose of the change is to align , commanise and make the MLQ and DU global. As a result there is DU change, however the Fit, Form and Function remains the same. The Reason for the change is a corrective action, in that to reduce the incoherence caused between DU and MLQ. The Change is implemented by standardizing the MLQ and DU. | Download | |||
| 02/15/2016 | FCT20160215 - FCT To Molex Part Numbers. | Download | |||
