| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 172704-0135 |
| Series: | 172704 |
| Amperage: | 2 A |
| Gender: | Female |
| Termination Method: | Solder Cup |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel |
| Contact Type: | High Voltage |
| Insulation Material: | PTFE |
| Orientation: | Straight |
| Operating Temperature Range: | -55 - 125 °C |
| Contact Mating Area Plating Thickness: | .8 µm |
| Mating Cycles: | 500 |
| Type: | Mixed Layout |
| Contact Termination Plating Thickness: | 0.800µm |
| Wire Size: | 20 AWG |
| Retainer Clip Material: | PEI |
| Product Name: | FCT Products |
| Part Aliases: | 1727040135 FMV001S107K |
| SKU: | MOL172704-0135 |
172704-0135
| Heilind Number: | MOL172704-0135 |
| Manufacturer: | Molex |
| Manufacturer Number: | 172704-0135 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Description:
FCT High Voltage Contact, Female, Straight, Solder Cup, 1.3µm Gold Mating Plating, with Plastic Retention Clip, 2A, 20 AWG or Smaller
More >>Specifications
Detailed Description
Introducing the FCT High Voltage Contact, a reliable solution for your power connector needs. This female contact features a straight, solder cup termination method, making it suitable for 20 AWG or smaller wires. With 0.80µm gold plating over nickel, it ensures excellent conductivity and corrosion resistance. Constructed from copper alloy and PTFE insulation, this contact is designed for durability even in harsh environments. Operating temperature range of -55 to 125 °C guarantees performance in various conditions. Perfect for power connectors, this RoHS-compliant contact is a must-have for your high voltage applications.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 02-06-5103 | 1.57mm Diameter, Standard .062 Pin and Socket Crimp Terminal, Female, with 0.38 |  |
 | Molex 10-01-3036 | 5.08mm Pitch SPOX Crimp Terminal Housing, 3 Circuits, Natural | |
 | Molex 15-04-0343 | Mini-Fit Jr. Strain Relief, 8 Circuits, Natural | |
 | Molex 172704-0099 | FCT Metal Backshell for D-Sub Connector, Shell Size 3, 45° Angle Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 172704-0134 | FCT High Voltage Contact, Male, Straight, Solder Cup, 0.80µm Gold Plating, 20 AWG or smaller | |
 | Molex 172704-0147 | FCT High Power Contact, Male, Straight, Solder Cup, 0.8µm Gold Mating Plating, 0.2µm Gold Termination Plating, 20A, 16-12 AWG | |
 | Molex 172704-0155 | FCT High Power Contact, Female, Straight, Solder Cup, 0.8µm Gold Mating Plating, 0.2µm Gold Termination Plating, Split Tine, 20A, 16-12 AWG | |
 | Molex 173107-0059 | FCT Mixed Layout D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, Tin-plated Shell with Dimples, 7 Circuits, 5 Signal Contacts Loaded | |
 | Molex 173107-0060 | FCT Mixed Layout D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, Tin-Plated Shell, 7 Circuits Max, 5 Signal Contacts Loaded, Green Insulator | |
 | Molex 173107-0069 | FCT Mixed Layout D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, Tin-plated Shell with Dimples, 24 Circuits, 17 Signal Contacts Loaded | |
 | Molex 173107-0070 | FCT Mixed Layout D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, Tin-plated Shell without Dimples, 24 Circuits, 17 Signal Contacts Loaded | |

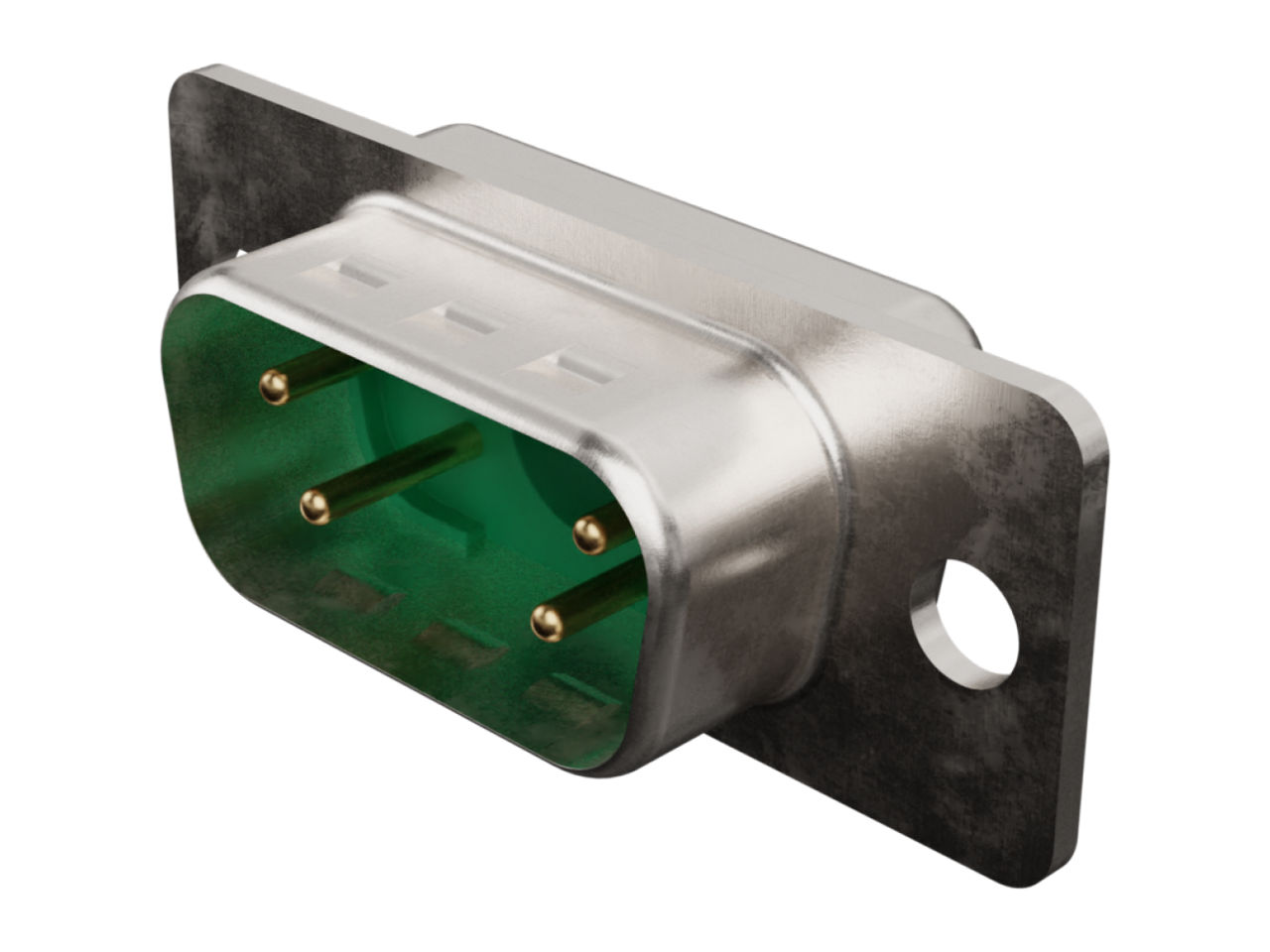

 | Molex 173107-0363 | FCT Mixed Layout D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, Tin-plated Shell with Dimples, 5 Circuits, 4 Signal Contacts Loaded | |
