| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 172447-1012 |
| Gender: | Male |
| Number of Contacts: | 12 |
| Number of Rows: | 2 |
| Contact Material: | Brass |
| Contact Plating: | Gold, Tin |
| Pitch: | 4.2 mm |
| Shroud Type: | Yes |
| Current Rating: | 9 A |
| Voltage Rating: | 600 V |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Straight |
| Mounting Type: | Through Hole |
| PCB Connector Type: | PCB Mount Header |
| SKU: | MOL172447-1012 |
172447-1012
| ICC Number: | MOL172447-1012 |
| Manufacturer: | Molex |
| Manufacturer Number: | 172447-1012 |
| ECAD Model: | |
Description:
Mini-Fit Jr. Header, Dual Row, Vertical, with Snap-in Plastic Peg PCB Lock, 12 Circuits, Nylon 6/6, UL 94V-2, Gold (Au) Plating, Glow-Wire Capable, Black
Specifications
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

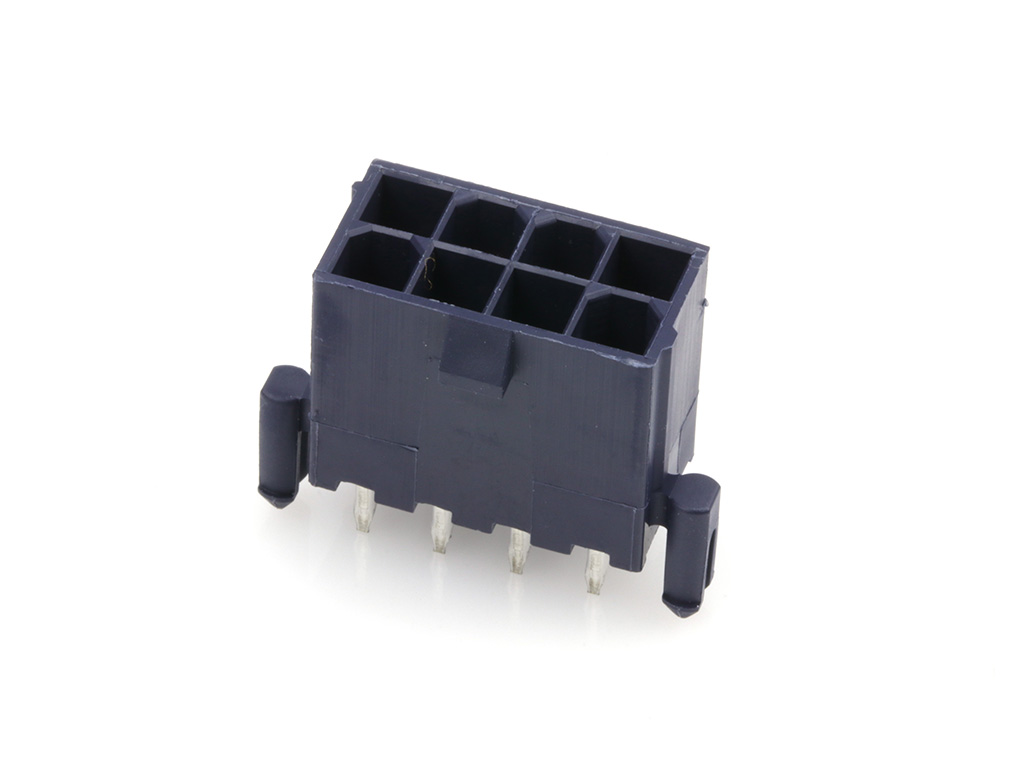

 | Molex 172447-1008 | Mini-Fit Jr. Header, Dual Row, Vertical, with Snap-in Plastic Peg PCB Lock, 8 Circuits, Nylon 6/6, UL 94V-2, Gold (Au) Plating, Glow-Wire Capable, Black |  |
 | Molex 26-48-1085 | KK 396 Breakaway Header, Vertical, Square Pin, with Friction Lock, 8 Circuits, 1.52µm Matte Tin (Sn) Plating, 4.37mm Tail Length, 11.43mm Mating Pin Length | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 12/30/2017 | 503120 - Equipment Transfer, Production Transfer or Rearrangement. This letter is to inform you that production of the part(s) identified in this notice are being moved to a different production or shipping location. No changes will be made to the product as a result of this move. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
