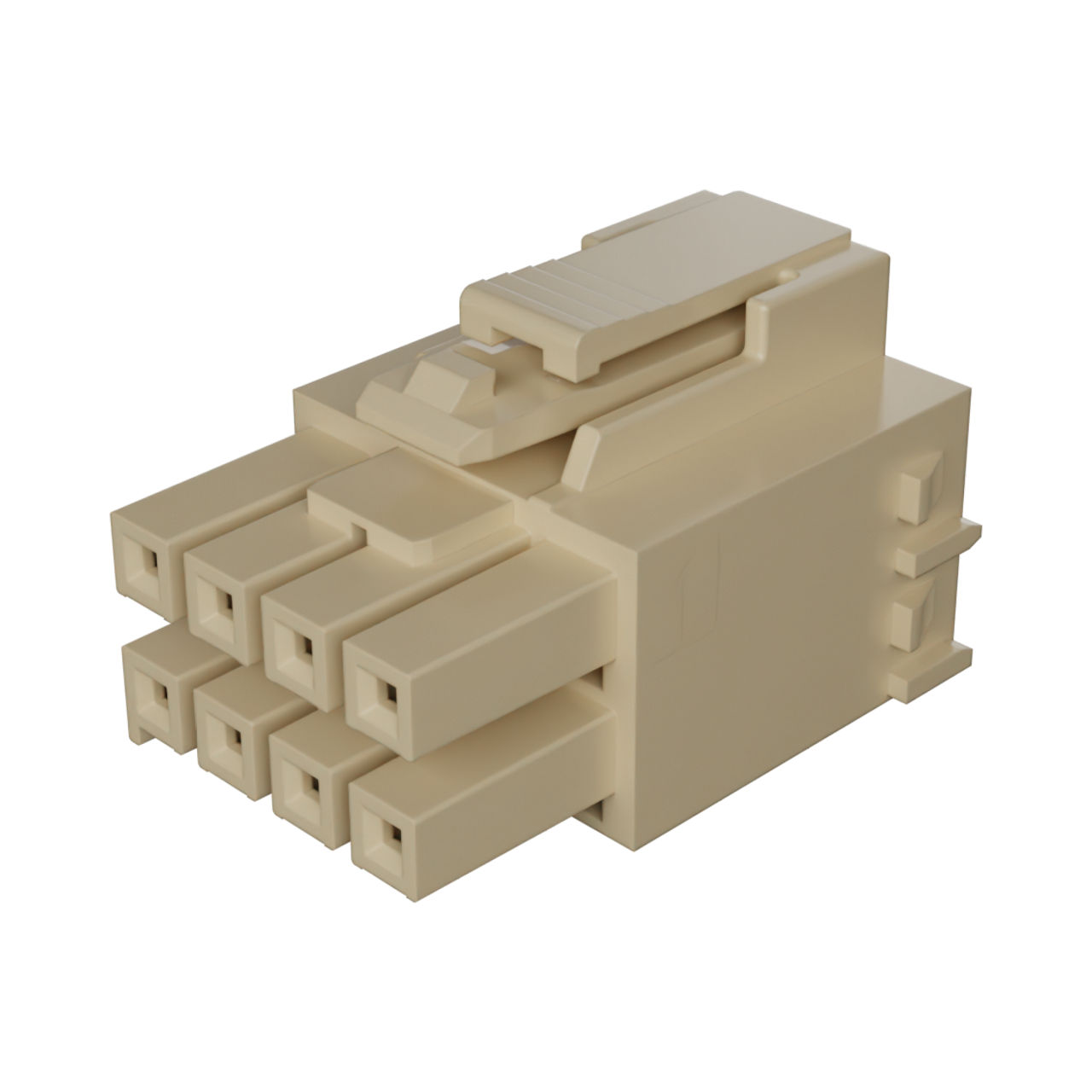

172258-4108

Heilind Number:	MOL172258-4108
Manufacturer:	Molex
Manufacturer Number:	172258-4108
Datasheet:	Product Literature
ECAD Model:

Description:

Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Dual Row, 8 Circuits, Natural, Glow-Wire Capable

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 172258-4108
Color:	Natural
Series:	172258
Connector Type:	Ultra-Fit
Gender:	Receptacle
Number of Contacts:	8
Number of Rows:	2
Pitch:	3.5 mm
Material:	Nylon
Keying:	Yes
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Board
Mates With:	Ultra-Fit Vertical Header Link:1722982108\|Link:1722982208\| Link:1722982308\|Link:1722992108\|Link:1722992208\|Link:1722992308 <, br>, Ultra-Fit Right-Angle Header Link:1723162108\|Link:1723162208\| Link:1723162308
Termination Pitch:	3.5 mm
Glow Wire Capable:	Yes
Lock to Mating Part:	Yes
Product Name:	Ultra-Fit
Part Aliases:	1722584108
SKU:	MOL172258-4108

Detailed Description

Introducing the Molex Ultra-Fit Tangless Receptacle Housing, a high-performance solution for your power connector needs. This dual-row housing features 8 circuits with a 3.50mm pitch, offering secure and reliable connections. Constructed from durable nylon, it is designed for long-lasting use in a wide range of applications. The natural color housing is glow-wire capable, ensuring safety and compliance with regulations. With keying for easy mating and polarization, it guarantees proper alignment every time. Operating in temperatures ranging from -40 to 105 °C, this housing is suitable for harsh environments. RoHS compliant and in stock for immediate shipping, the Ultra-Fit is the ideal choice for your power connector system.
