15135-0806

Heilind Number:MOL15135-0806
Manufacturer:Molex
Manufacturer Number:15135-0806
Datasheet:Drawing
ECAD Model:
3D Model

Description:

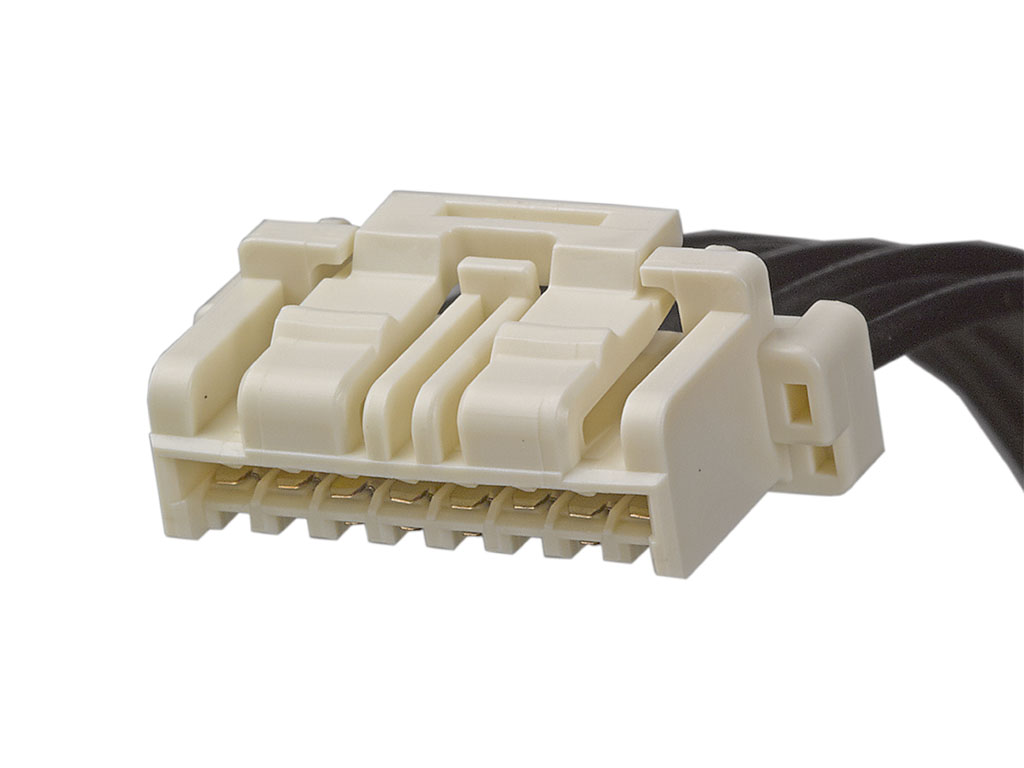

CLIK-Mate-to-CLIK-Mate Off-the-Shelf (OTS) Cable Assembly, 1.50mm Pitch, Single Row, 600.00mm Length, 8 Circuits, Beige

More >>

Specifications

AttributeValue
Product Category:
Manufacturer:Molex
Manufacturer Part Number:Molex 15135-0806
Color:Beige
Series:15135 - CLIK-Mate OTS
Accessory Type:Cable Assemblies
Amperage:1.5 A
Connector Type:CLIK-Mate OTS
Gender:Male
Termination Method:Crimp or Compression
Contact Material:Copper Alloy
Voltage:100 V AC/DC
Material:PBT
Wire Type:UL 1061
Cable Length:600 mm
Connection Gender:Male
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:.406 µm
Number of Contacts Loaded:8
Mating Pitch:1.5 mm
Contact Termination Plating Thickness:.406 µm
Wire Size:24 AWG
Contact Termination Plating:Tin
Wire Insulation Diameter:1.1 mm
Lock to Mating Part:Yes
Connector Assembly Type:Dual Ended Connectors
Connector To Connector:CLIK-Mate to CLIK-Mate
Part Aliases:0151350806
SKU:MOL15135-0806

Detailed Description

Introducing the 15135-0806 CLIK-Mate-to-CLIK-Mate Off-the-Shelf (OTS) Cable Assembly, a high-quality connectivity solution for your electronic devices. This cable features a 1.50mm pitch and a single row design, with a generous 600.00mm length to accommodate various setups. With 8 circuits and a durable beige PBT construction, it ensures reliable performance in any application. The male CLIK-Mate OTS connector type, along with crimp or compression termination method, guarantees secure and efficient connections. Rated for 1.5 A and 100 V AC/DC, with RoHS compliance, this cable meets strict industry standards for safety and environmental responsibility. Whether for commercial or industrial use, trust the 15135-0806 for seamless and dependable connectivity.
