15135-0702

MOL15135-0702
Heilind Number:MOL15135-0702
Manufacturer:Molex
Manufacturer Number:15135-0702
Datasheet:Drawing
ECAD Model:
3D Model

Description:

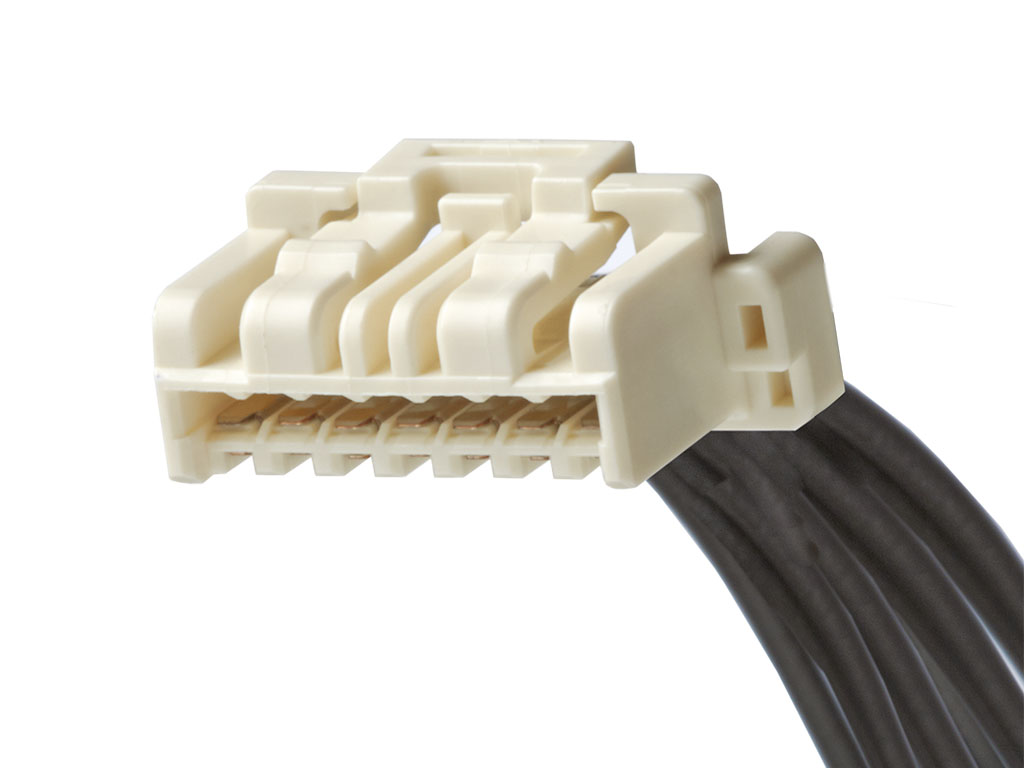

CLIK-Mate-to-CLIK-Mate Off-the-Shelf (OTS) Cable Assembly, 1.50mm Pitch, Single Row, 150.00mm Length, 7 Circuits, Beige

More >>

Specifications

AttributeValue
Product Category:
Sensor Connecting Accessories Sensor Cables & Connectors
Manufacturer:Molex
Manufacturer Part Number:Molex 15135-0702
Color:Beige
Series:15135 - CLIK-Mate OTS
Accessory Type:Cable Assemblies
Amperage:1.5 A
Connector Type:CLIK-Mate OTS
Gender:Male
Termination Method:Crimp or Compression
Contact Material:Copper Alloy
Voltage:100 V AC/DC
Material:PBT
Wire Type:UL 1061
Cable Length:150 mm
Connection Gender:Male
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:.406 µm
Number of Contacts Loaded:7
Mating Pitch:1.5 mm
Contact Termination Plating Thickness:.406 µm
Wire Size:24 AWG
Contact Termination Plating:Tin
Wire Insulation Diameter:1.1 mm
Lock to Mating Part:Yes
Connector Assembly Type:Dual Ended Connectors
Connector To Connector:CLIK-Mate to CLIK-Mate
Part Aliases:0151350702
SKU:MOL15135-0702

Detailed Description

Introducing the 15135-0702, a high-quality CLIK-Mate-to-CLIK-Mate Off-the-Shelf (OTS) Cable Assembly designed for seamless connectivity in electronic applications. With a narrow 1.50mm pitch and featuring seven circuits in a single row configuration, this beige-colored assembly offers versatility and efficiency in cable management. Crafted with durable PBT material and UL 1061 wire type, it ensures reliable performance even in demanding environments. Each contact is plated with tin for enhanced conductivity, with a rating of 1.5 A and 100 V AC/DC, making it suitable for various power and signal transmission needs. The 150mm cable length, along with male-male connection gender, provides flexibility for installation. RoHS compliant and meticulously engineered, the 15135-0702 is a premium solution for your connectivity requirements.
