| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 15-91-0100 |
| Color: | Black |
| Series: | 71308 - C-Grid |
| Amperage: | 3 A |
| Connector Type: | C-Grid |
| Number of Contacts: | 10 |
| Number of Rows: | 2 |
| Termination Method: | Surface Mount |
| Contact Material: | Phosphor Bronze |
| Body Orientation: | Straight |
| Pitch: | 2.54 mm |
| Voltage: | 250 V |
| Material: | High Temperature Thermoplastic |
| Orientation: | Vertical |
| Packaging: | Tube |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .381 µm |
| Number of Contacts Loaded: | 10 |
| Mating Cycles: | 50 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Contact Termination Plating Thickness: | 2.032 µm |
| Polarized to Mate: | No |
| Connector System: | Board to Board, Wire to Board |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 260 °C |
| Lead Free Process Capability: | REFLOW |
| Duration at Max. Process Temperature (seconds): | 005 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Stackable: | Yes |
| Breakaway: | Yes |
| Shroud Type: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0015910100 71308-0110N |
| SKU: | MOL15-91-0100 |
15-91-0100
Specifications
Detailed Description
Introducing the 15-91-0100, a high-performance C-Grid connector from the 71308 series. With a sleek black design and boasting a 3A amperage rating, this connector is a reliable choice for your PCB assembly needs. Featuring 10 contacts in a 2-row configuration, it offers efficient signal transmission. The surface mount termination method and phosphor bronze contact material ensure durability and stability in operation. With a voltage rating of 250V and operating temperature range of -40 to 105°C, this connector is suitable for a wide range of applications. It is UL and CSA certified, RoHS compliant, and lead-free process capable, making it a sustainable choice for your projects. With its vertical orientation, gold contact mating area plating, and stackable, breakaway design, the 15-91-0100 offers versatility and ease of use in various electronic systems. Upgrade your connectivity solutions with this top-of-the-line PCB connector.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 15-91-2080 | 2.54mm Pitch C-Grid Header, Surface Mount, Dual Row, Vertical, 8 Circuits, Tin (Sn) Plating, without PCB Locator Pegs |  |
 | Molex 22-28-4063 | KK 254 Breakaway Header, Vertical, 6 Circuits, 0.38 | |
 | Molex 53047-0510 | 1.25mm Pitch PicoBlade Wire-to-Board Header, Vertical, with Friction Lock, 5 Circuits | |

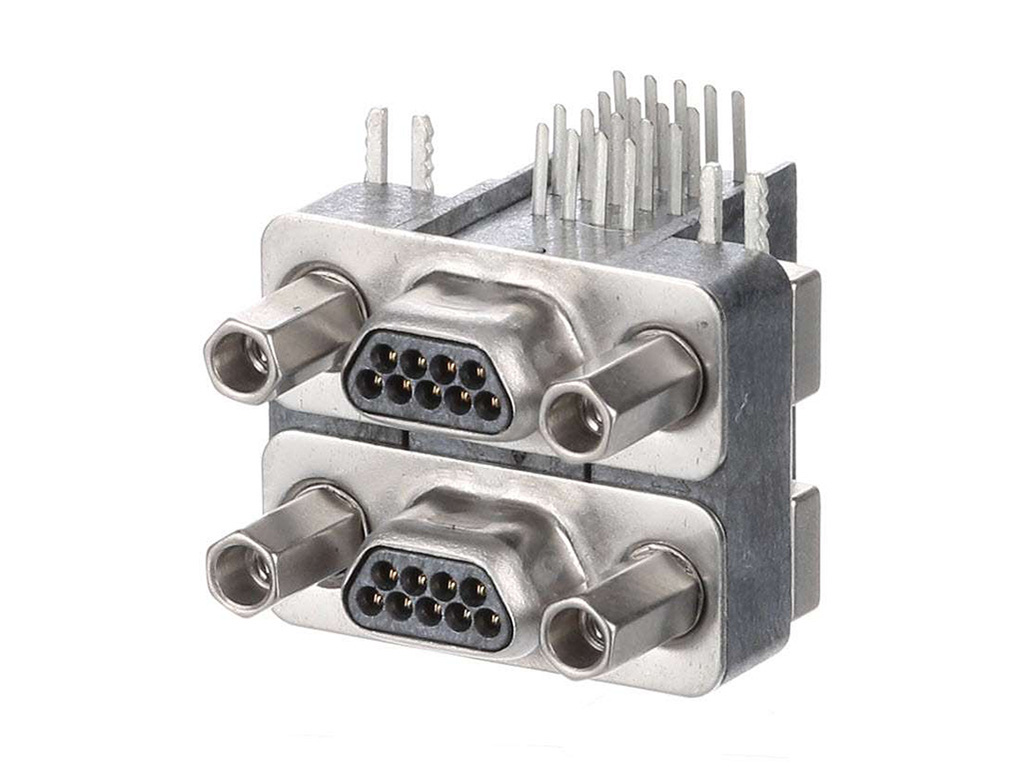

 | Molex 83619-9003 | 1.27mm Pitch Commercial Micro D, Dual Stack, PCB Mount, Right-Angle Plug, 18 Circuits | |
