| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 15-06-0105 |
| Color: | Natural |
| Series: | 42475 - Mini-Fit BMI |
| Amperage: | 13 A |
| Connector Type: | Mini-Fit BMI |
| Gender: | Plug |
| Housing Material: | Nylon |
| Number of Contacts: | 10 |
| Number of Rows: | 2 |
| Mount Type: | Panel Mount |
| Pitch: | 4.2 mm |
| Material: | Nylon |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board, Wire to Wire |
| Termination Pitch: | 4.2 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0015060105 42475-1011 |
| SKU: | MOL15-06-0105 |
15-06-0105
| Heilind Number: | MOL15-06-0105 |
| Manufacturer: | Molex |
| Manufacturer Number: | 15-06-0105 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:
Mini-Fit BMI Plug Housing, 4.20mm Pitch Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, 10 Circuits
More >>Specifications
Detailed Description
Introducing the 15-06-0105 Mini-Fit BMI Plug Housing, a versatile and reliable connector for your power applications. This housing, part of the 42475 Mini-Fit BMI series, features a 4.20mm pitch dual row design with panel mount ears for secure installation. Constructed from PA Polyamide Nylon 6/6 with UL 94V-2 certification, it ensures durability and safety. With 10 circuits and a current rating of 13A, it is suitable for a wide range of power connections. Its polarized plug design prevents incorrect mating, while the panel mount feature and lock to mating part capability add extra security. RoHS compliant and suitable for wire-to-wire or wire-to-board connections, this housing is a reliable choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 15-06-0100 | Mini-Fit BMI Receptacle Housing, 4.20mm Pitch, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, 10 Circuits |  |
 | Molex 15-06-0101 | Mini-Fit BMI Receptacle Housing, 4.20mm Pitch, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 10 Circuits | |

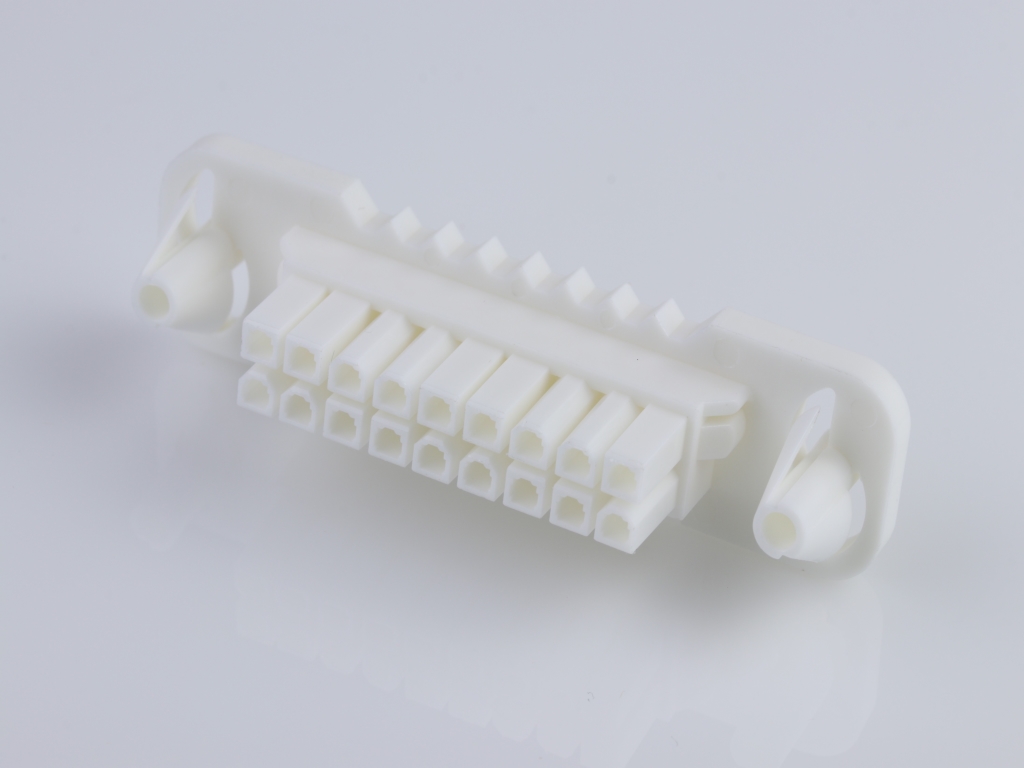

 | Molex 15-06-0181 | Mini-Fit BMI Receptacle Housing, 4.20mm Pitch, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 18 Circuits | |
