| Attribute | Value |
|---|---|
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 130025-0122 |
| IP Rating: | IP67 |
| Cable Length: | 50 m |
| Jacket Material: | Polyvinyl Chloride |
| Wire Size: | 18 to 15 AWG |
| Jacket Color: | Gray |
| Current Rating: | 8 A |
| Voltage Rating: | 300 V |
| Operating Temperature: | -20 to 60 °C |
| Connector End A: | Mini-Change |
| Connector End A Gender: | Male |
| Connector End A Number of Contacts: | 5 |
| Connector End B: | Mini-Change |
| Connector End B Gender: | Female |
| Connector End B Number of Contacts: | 5 |
| SKU: | MOL130025-0122 |
130025-0122
| ICC Number: | MOL130025-0122 |
| Manufacturer: | Molex |
| Manufacturer Number: | 130025-0122 |
| ECAD Model: | |
Description:

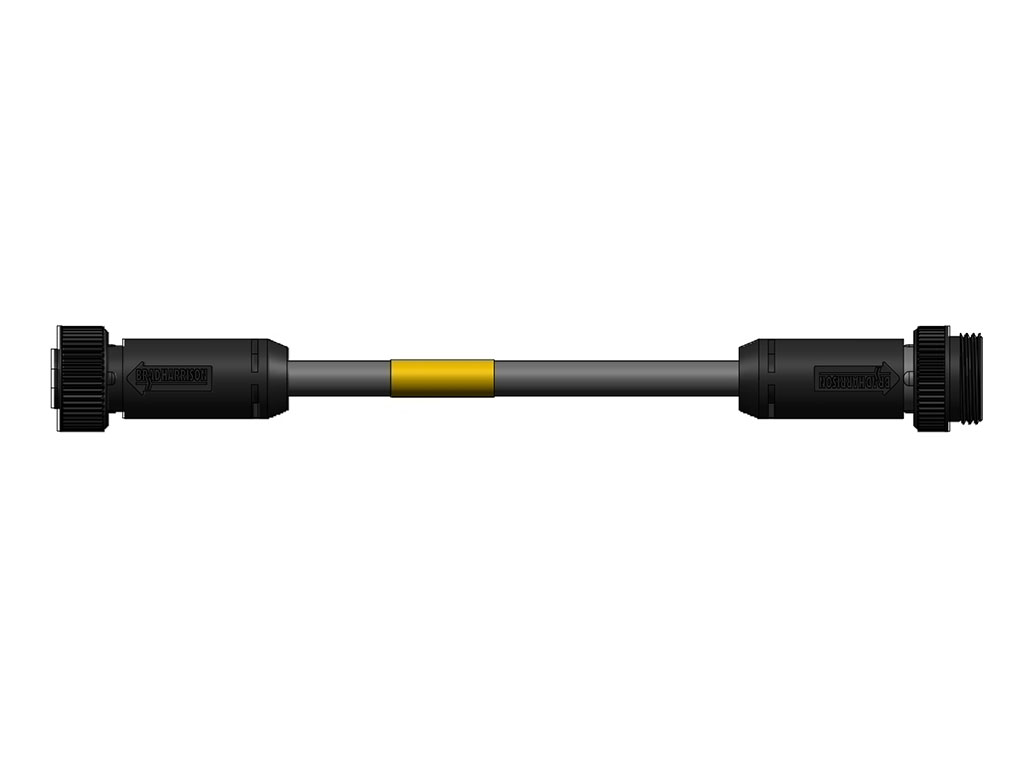

Mini-Change A-Size Double-Ended Cordset, 5 Poles, Male (Straight) to Female (Straight), 18/15 AWG, Gray DeviceNet Thick (Trunk) Cable, 50.0m (164.04') Length
Specifications
