| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 120006-0018 |
| Series: | 120006 |
| Amperage: | 4 A |
| Connector Type: | Micro-Change (M12) |
| Gender: | Female-Pigtail |
| Contact Material: | Copper Alloy |
| Maximum Operating Temperature: | 80 °C |
| Minimum Operating Temperature: | -20 °C |
| Voltage: | 250 V AC/DC |
| IP Rating: | IP67 |
| Connector End 1: | Micro-Change (M12) |
| Connector End 2: | Pigtail |
| Orientation: | Straight to Pigtail |
| Number of Poles: | 4 |
| Body Material: | PUR |
| Cable Diameter: | 5.3 mm |
| Cable Type: | EU Cable |
| Cable Length: | 2 m |
| Jacket Material: | PUR/PVC |
| Keyway Polarization: | Single |
| Operating Temperature Range: | -20 - 80 °C |
| Contact Mating Area Plating: | Gold over Nickel |
| Coupling Nut Material: | Nickel-plated Brass |
| Coupling Nut Style: | Threaded |
| Part Aliases: | 1200060018 804000P03M020 |
| SKU: | MOL120006-0018 |
120006-0018
Specifications
Detailed Description

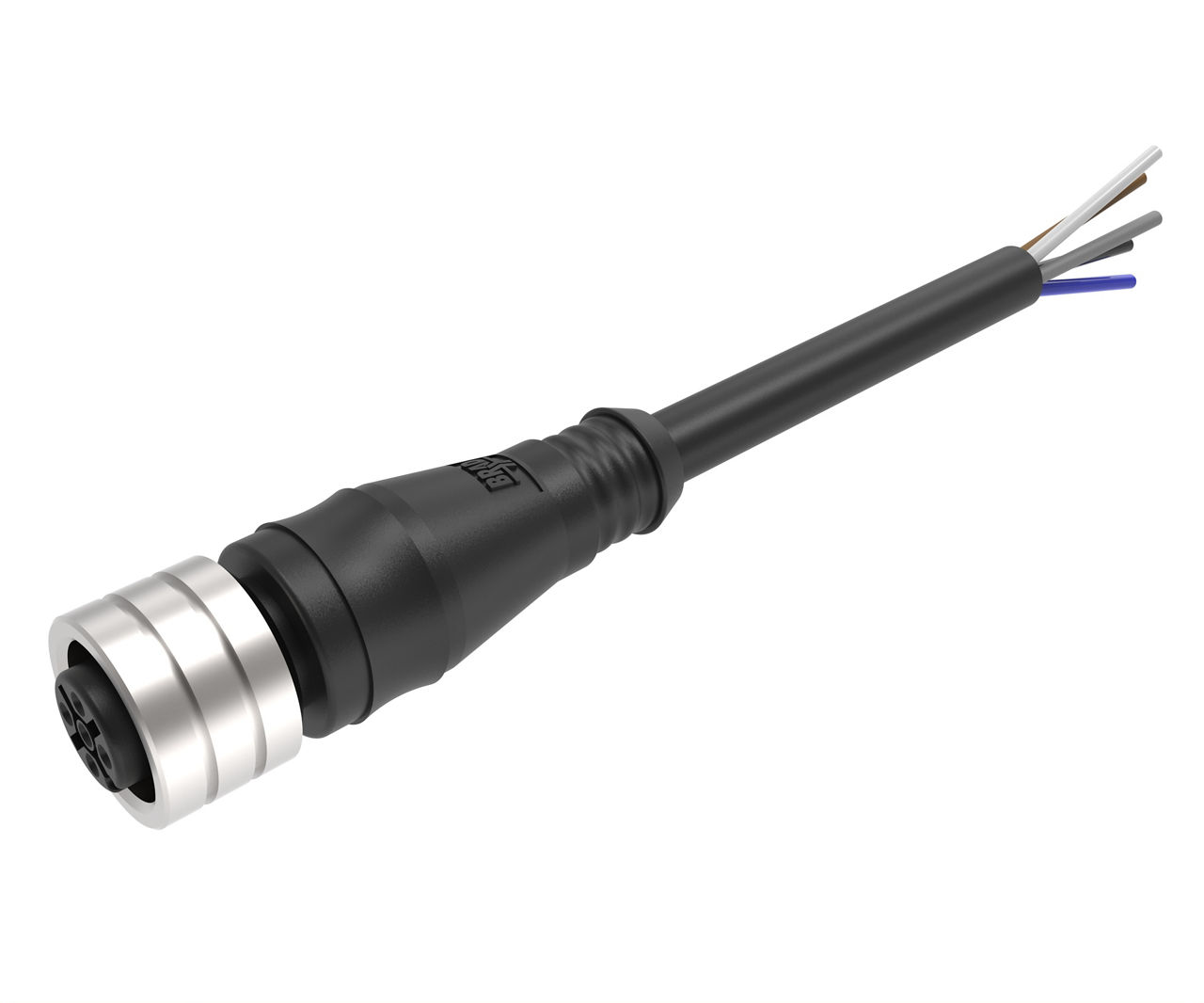

120006-0018 - Introducing the Micro-Change (M12) Single-Ended Cordset, a reliable and durable solution for your industrial connectivity needs. This cordset features a female (straight) to pigtail configuration, with 4 poles for efficient signal transmission. Constructed with a robust 0.34mm² PUR/PVC cable, it ensures flexibility and longevity in harsh environments. With a length of 2.0m (6.56'), this cordset offers ample reach for versatile applications. Rated for 4A and 250V AC/DC, it guarantees safe and efficient performance. The IP67 rating ensures protection against dust and water ingress, making it ideal for a wide range of industrial settings. Trust in the quality and reliability of the Micro-Change (M12) Cordset for seamless sensor connectivity.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 09-50-3041 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 4 Circuits, Natural |  |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 06/30/2023 | 513014 - Change to Product. M12 COUPLING NUT MA/FE CHANGE TOLERANCE. Diameter tolerance change from 14.5 +0.5 to 14.5+0.3/-0.1 mm. Depending on the supplier method used, the material throw-up is sometimes somewhat larger and sometimes only very minimal. | Download | |||
