106815-0004

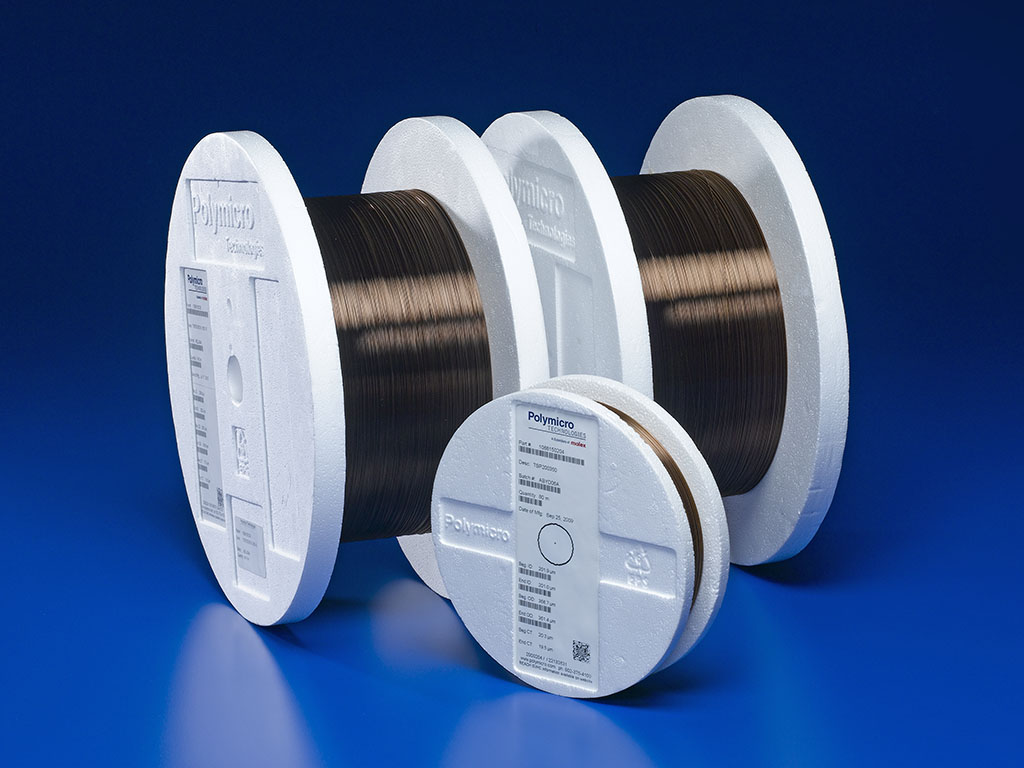

Polymicro Technologies Flexible Fused Silica Capillary Tubing, Inner Diameter 10
Part Aliases: Molex 1068150004 Molex 2000004
Polymicro Technologies presents Flexible Fused Silica Capillary Tubing, a high-performance solution for industrial, medical, research, and scientific applications. This tubing, part of the 106815 - Standard series, boasts RoHS compliance and features a Standard Polyimide coating with a nominal thickness of 12 µm per side. With an inner diameter of 10 µm and an outside diameter of 150 µm (with tolerances of ±2 µm and ±6 µm, respectively), this tubing offers precision and reliability. Operating seamlessly in a wide temperature range from -65 to 350 °C, it is suitable for diverse environments. Each package includes 10 meters of tubing, conveniently stored on a spool for easy access. The TSP capillary series designation ensures quality and performance. Trust in Polymicro Technologies for top-of-the-line capillary tubing solutions.
Details
Product Category: | |
Manufacturer: | Molex |
Manufacturer Part Number: | Molex 106815-0004 |
Series: | 106815 - Standard |
Connector Type: | Standard |
Outside Diameter: | 150 µm |
Inside Diameter: | 10 µm |
Inside Diameter Tolerance: | ± 2 µm |
Outside Diameter Tolerance: | ± 6 µm |
Application: | Industrial, Medical, Research, Scientific, and other |
Packaging: | Spool |
Operating Temperature Range: | -65 - 350 °C |
Coating Thickness Per Side: | 12 µm nominal |
Cutting Style: | Precision Cleave |
Tubing Material: | Synthetic Fused Silica |
Coating Material: | Standard Polyimide |
Tubing Length: | 10 m |
Capillary Series: | TSP |
Standards Met: | RoHS Compliant |
Part Aliases: | 1068150004 2000004 |
SKU: | MOL106815-0004 |
Compliance
Environmental Initiative Details
Environmental Initiative: | RoHS |
---|---|
Compliant: | Unknown |
Date of this Information: | Unknown |
Notes: |
