| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 105310-1108 |
| Color: | Black |
| Series: | 105310 |
| Amperage: | 6.5 A |
| Connector Type: | Nano-Fit |
| Number of Contacts: | 8 |
| Number of Rows: | 2 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Straight |
| Pitch: | 2.5 mm |
| Voltage: | 250 V AC/DC |
| Material: | Liquid Crystal Polymer |
| Orientation: | Vertical |
| Keying: | Yes |
| Tail Length: | 3.2 mm |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Tin over Nickel |
| Contact Mating Area Plating Thickness: | 1.524 µm |
| Number of Contacts Loaded: | 8 |
| Mating Cycles: | 25 |
| PCB Locator: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Contact Termination Plating Thickness: | 1.524 µm |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.6 mm, 2.4 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin over Nickel |
| Termination Pitch: | 2.5 mm |
| Glow Wire Capable: | Yes |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Surface Mount Compatible: | No |
| Breakaway: | No |
| Shroud Type: | Yes |
| Product Name: | Nano-Fit |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 1053101108 |
| SKU: | MOL105310-1108 |
105310-1108
| Heilind Number: | MOL105310-1108 |
| Manufacturer: | Molex |
| Manufacturer Number: | 105310-1108 |
| Datasheet: | Product Literature |
| ECAD Model: | |
Description:
Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 8 Circuits, with Kinked Pins, Tin (Sn) Plating, Black
More >>Specifications
Detailed Description
Introducing the Nano-Fit Vertical Header, a high-performance PCB connector designed for power applications. This through-hole header features a compact 2.50mm pitch and dual-row layout, with 8 circuits for efficient power delivery. Engineered with kinked pins for secure connections, it boasts tin (Sn) plating for enhanced durability. The sleek black design, crafted from Liquid Crystal Polymer, offers both style and reliability. With a straight body orientation and vertical placement, it ensures seamless integration onto your PCB. Rated for 6.5 A and 250 V AC/DC, this header is suitable for a wide range of power-sensitive industries. RoHS compliant and glow-wire capable, it meets stringent safety standards. Trust the Nano-Fit Vertical Header for your power connectivity needs.
Frequently Bought Together

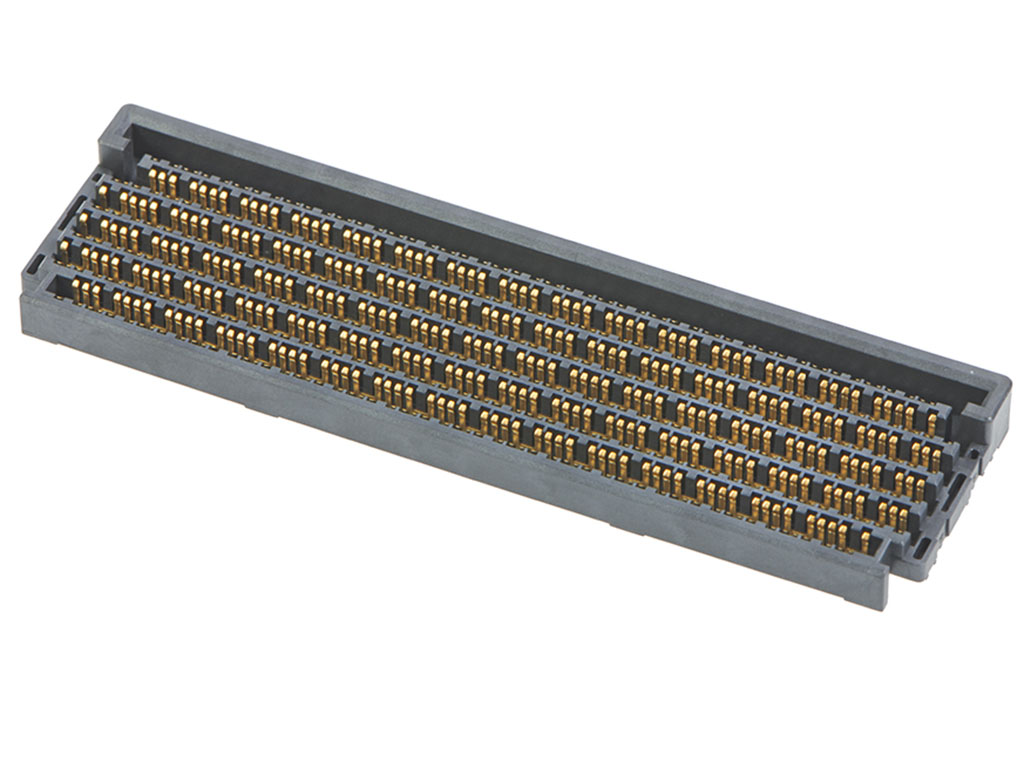

| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 171971-0105 | SL LCP VERT HDR ASSY TH 15AU 0 SL LCP VERT HD ASSY |  |

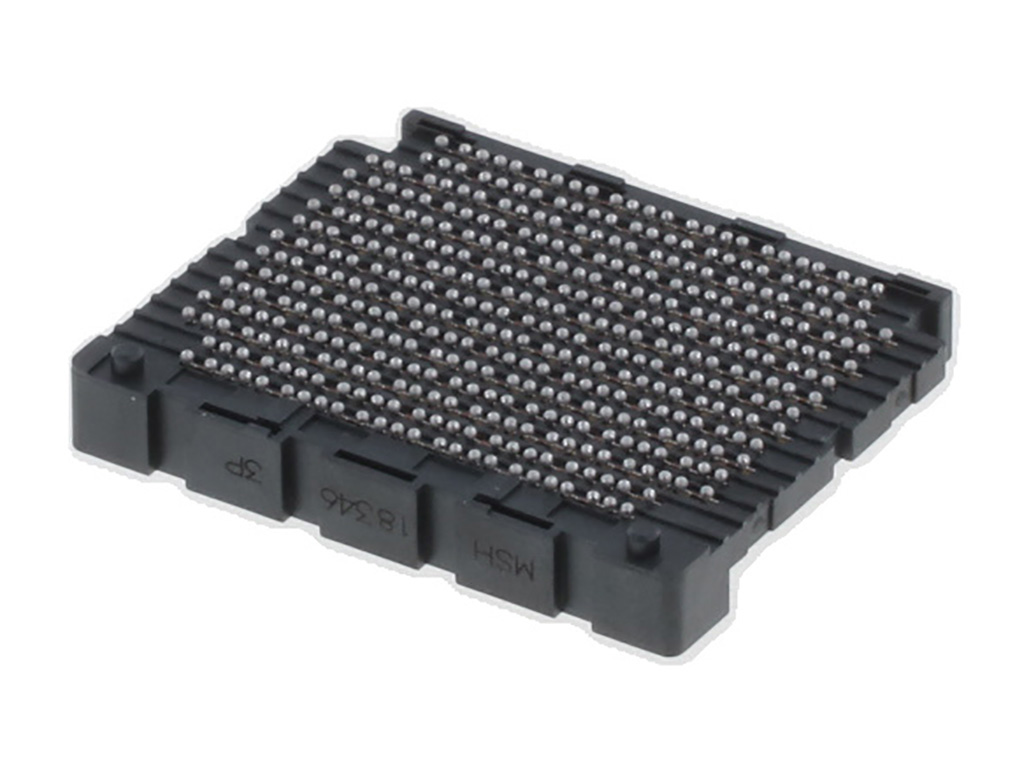

 | Molex 202828-1506 | MEZZ CONN,HRMAPH,6PRX15ROW 2.5MM HT,BGA,30uAU | |
 | Molex 501190-2017 | 1.00mm Pitch Pico-Clasp Wire-to-Board Header, Surface Mount, Dual Row, Vertical, Gold Plated, with Inner Positive Lock, with Pick-and-Place Tape, 20 Circuits | |

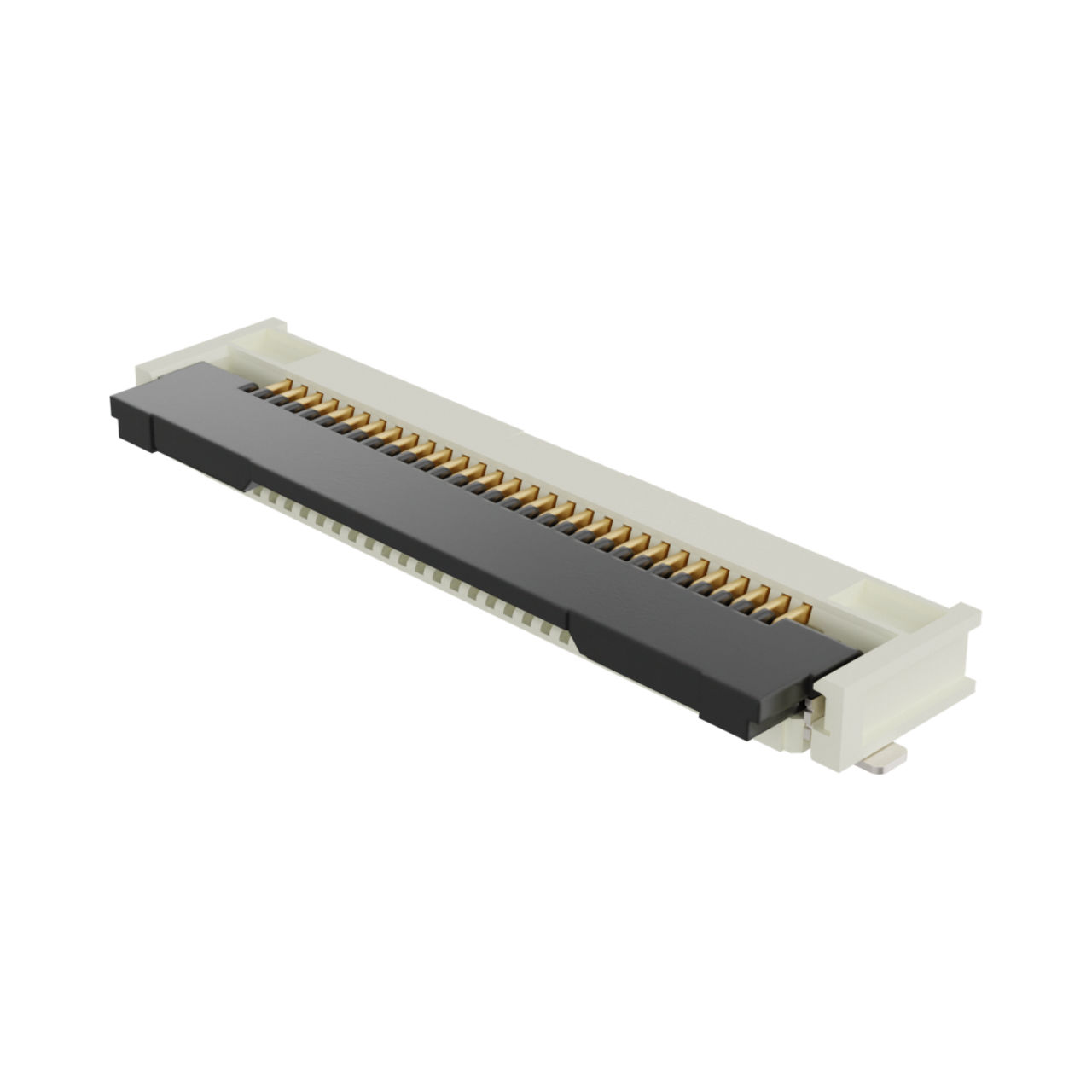

 | Molex 505110-3091 | Easy-On FFC/FPC Connector 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 30 Circuits, Gold over Nickel Plating | |
