105017-1001

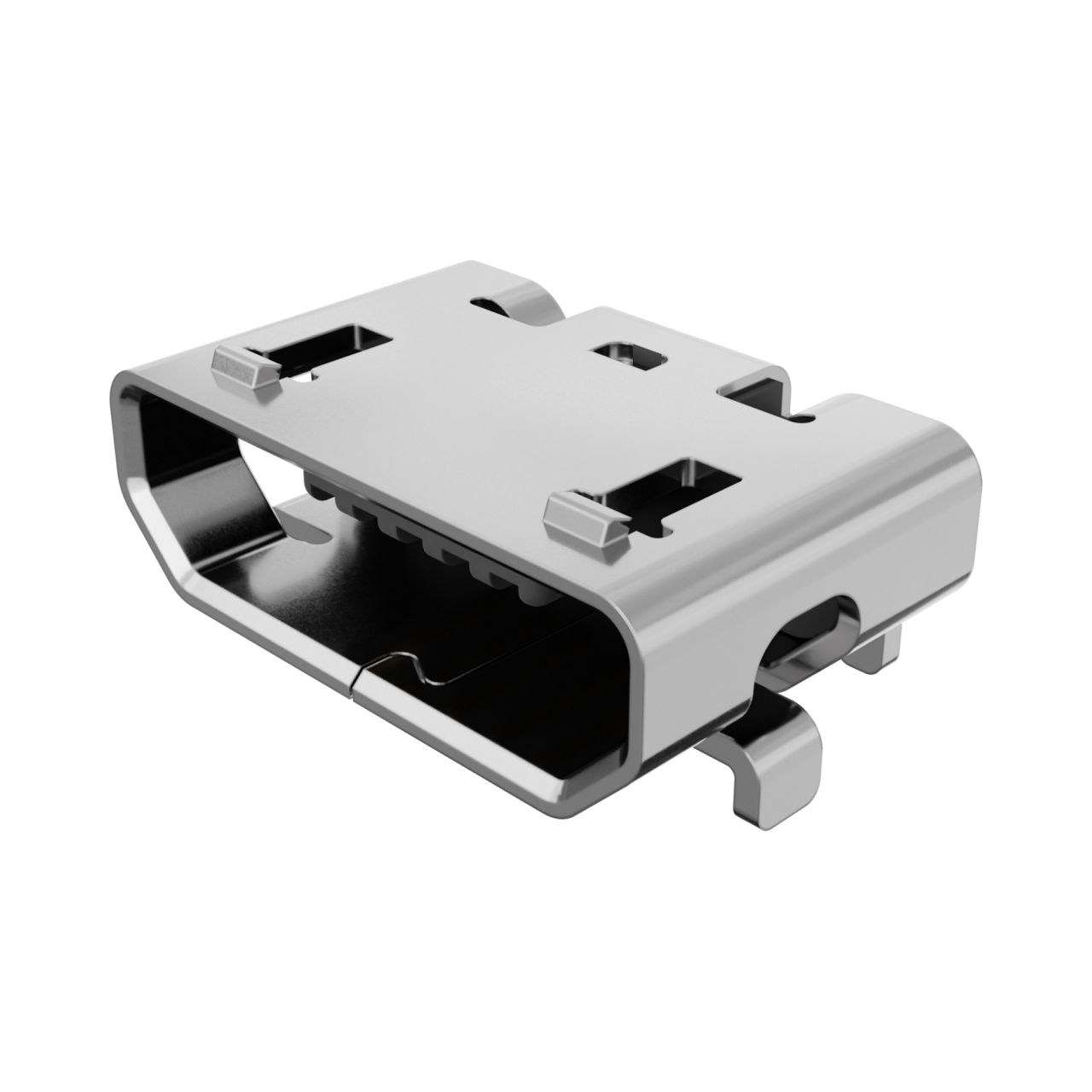

Micro-USB B Receptacle, Bottom Mount, Surface Mount, Lead-Free
Part Aliases: Molex 1050171001
The 105017-1001, a high-performance Micro-USB B Receptacle designed for seamless connectivity in electronic devices. Featuring a sleek black finish and constructed with durable High Temperature Thermoplastic, this Surface Mount connector is not only visually appealing but also offers reliable functionality in a wide range of operating temperatures from -30 to 85 °C. With a compact Right Angle body orientation and a low pitch of .65 mm, it is ideal for space-constrained applications. Engineered for high-speed data transfer, it is part of the USB 2.0 series and boasts a maximum voltage of 30 V AC/DC. The 5 gold-plated contacts ensure excellent signal integrity, while the Full Shield design minimizes interference. RoHS compliant and lead-free, this component is environmentally friendly. Perfect for PCB integration, it has a secure solder termination method and is compatible with automated assembly processes. Trust in the 105017-1001 for your connectivity needs, where quality and performance meet innovation.
Details
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 105017-1001 |
| Color: | Black |
| Series: | 105017 - USB 2.0 |
| Amperage: | 1.8 A, 1 A |
| Connector Type: | USB |
| Gender: | Female |
| Number of Contacts: | 5 |
| Number of Rows: | 1 |
| Termination Method: | Surface Mount |
| Contact Material: | Copper Alloy |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -30 °C |
| Body Orientation: | Right Angle |
| Pitch: | .65 mm |
| Voltage: | 30 V AC/DC |
| Shield Type: | Full Shield |
| Material: | High Temperature Thermoplastic |
| Number of Ports: | 1 |
| Orientation: | Right Angle |
| Keying: | Yes |
| USB Type: | Micro-B |
| Component Type: | Receptacle |
| Operating Temperature Range: | -30 - 85 °C |
| Contact Mating Area Plating: | Gold |
| Ground to Panel / PCB: | Yes |
| Number of Contacts Loaded: | 5 |
| Mating Cycles: | 10000 |
| Shielded: | Yes |
| PCB Retention: | Without |
| Polarized to Mate: | Yes |
| Supplier Product Group: | USB Connectors |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Gold |
| Maximum Solder Process Temperature: | 255 °C |
| Duration at Max. Process Temperature (seconds): | 003 |
| Max. Cycles at Max. Process Temperature: | 002 |
| Termination Pitch: | .65 mm |
| Lock to Mating Part: | No |
| Surface Mount Compatible: | Yes |
| Waterproof Dustproof: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 1050171001 |
| SKU: | MOL105017-1001 |
