| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 09-48-3105 |
| Color: | Natural |
| Series: | 41815 - KK 396 |
| Amperage: | 5 A |
| Connector Type: | KK 396 |
| Number of Contacts: | 10 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Body Orientation: | Right Angle |
| Pitch: | 3.96 mm |
| Voltage: | 250 V |
| Material: | Polyester |
| Orientation: | Right Angle |
| Tail Length: | 3.68 mm |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .381 µm |
| Number of Contacts Loaded: | 10 |
| PCB Locator: | No |
| PCB Retention: | With |
| Polarized to PCB: | Yes |
| Contact Termination Plating Thickness: | 2.54 µm |
| Supplier Product Group: | PCB Socket Receptacles |
| Connector System: | Board to Board |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 235 °C |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 005 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0009483105 A-41815-0433 |
| SKU: | MOL09-48-3105 |
09-48-3105
Specifications
Detailed Description
Introducing the Molex KK 396 PC Board Connector, a high-quality right-angle receptacle designed for power applications. With 10 gold (Au) selective plated circuits, this connector ensures reliable conductivity and signal transmission. Its polyester construction and natural color make it durable and versatile for a wide range of electronic devices. Featuring a 3.96mm pitch and rated for up to 250V and 5A, it meets the demands of various power and signal connections. With through-hole termination and a 3.68mm tail length, it offers easy and secure installation onto PCBs. RoHS compliant and lead-free wave solder compatible, this connector is not only environmentally friendly but also suitable for automated assembly processes. Trust in the Molex KK 396 for dependable and efficient board-to-board connections in your electronic designs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

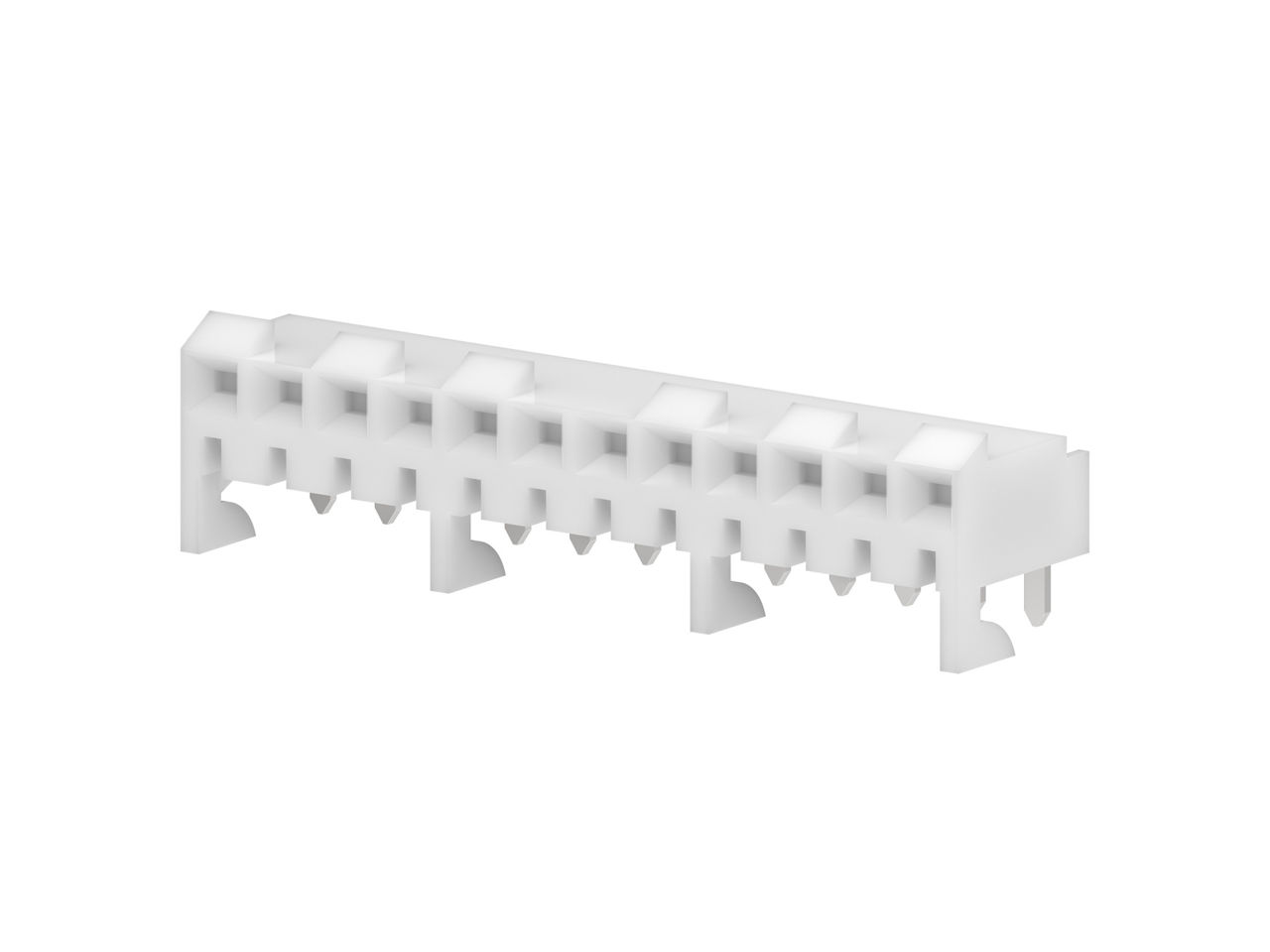

 | Molex 09-48-3125 | KK 396 PC Board Connector, Right-Angle, Polyester Connector, Gold (Au) Selective, 12 Circuits |  |
 | Molex 22-01-3027 | KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 2 Circuits, Natural | |
 | Molex 22-11-2052 | KK 254 Solid Header, Vertical, with Friction Lock, 5 Circuits, Gold (Au) Plating | |
 | Molex 22-23-2021 | KK 254 Solid Header, Vertical, with Friction Lock, 2 Circuits, Tin (Sn) Plating | |
 | Molex 22-28-4360 | KK 254 Breakaway Header, Vertical, 36 Circuits, Tin (Sn) Plating, Mating Pin Length 6.09mm | |

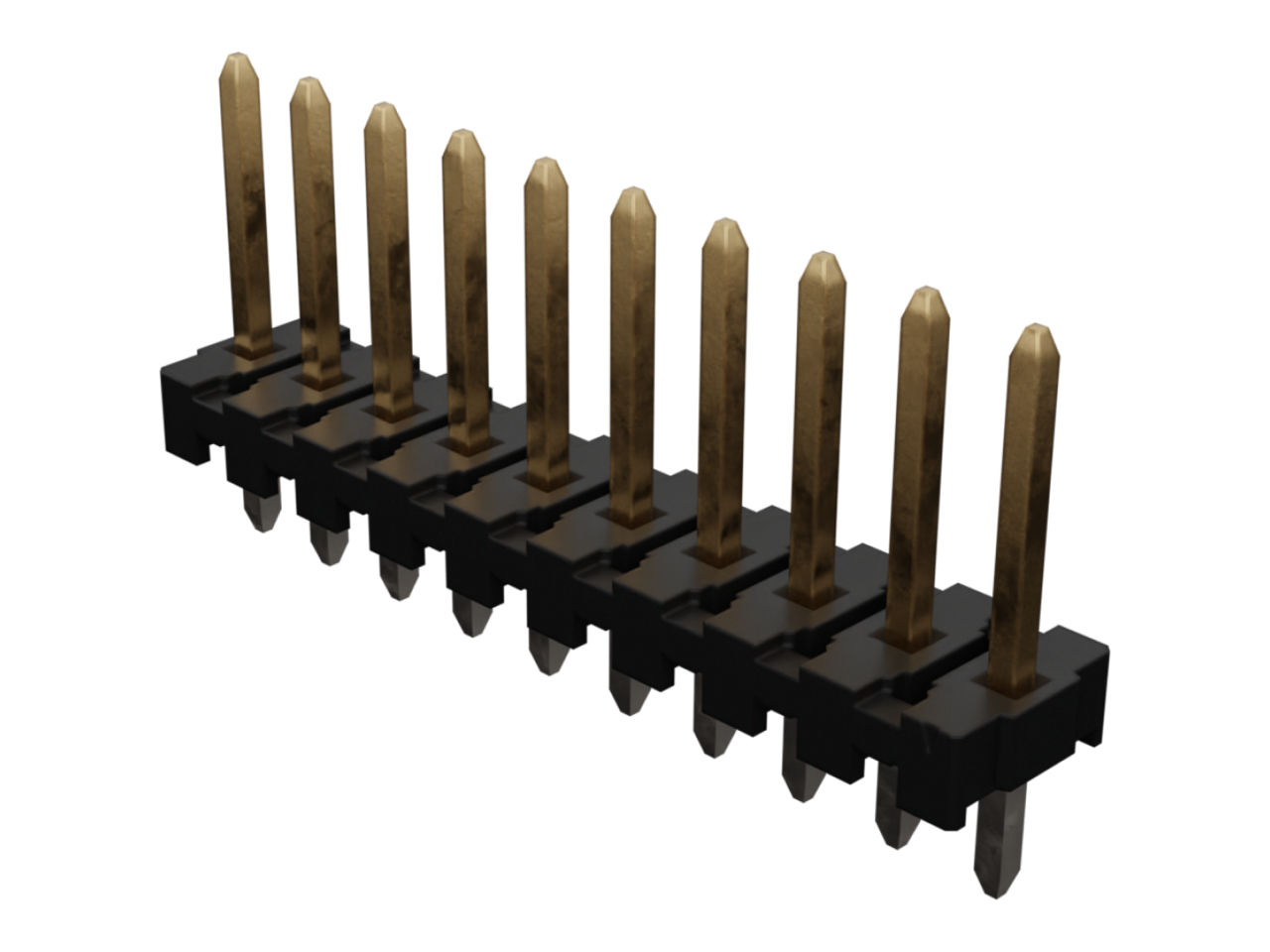

 | Molex 26-48-2101 | KK 396 Breakaway Header, Vertical, 10 Circuits, 0.50 | |

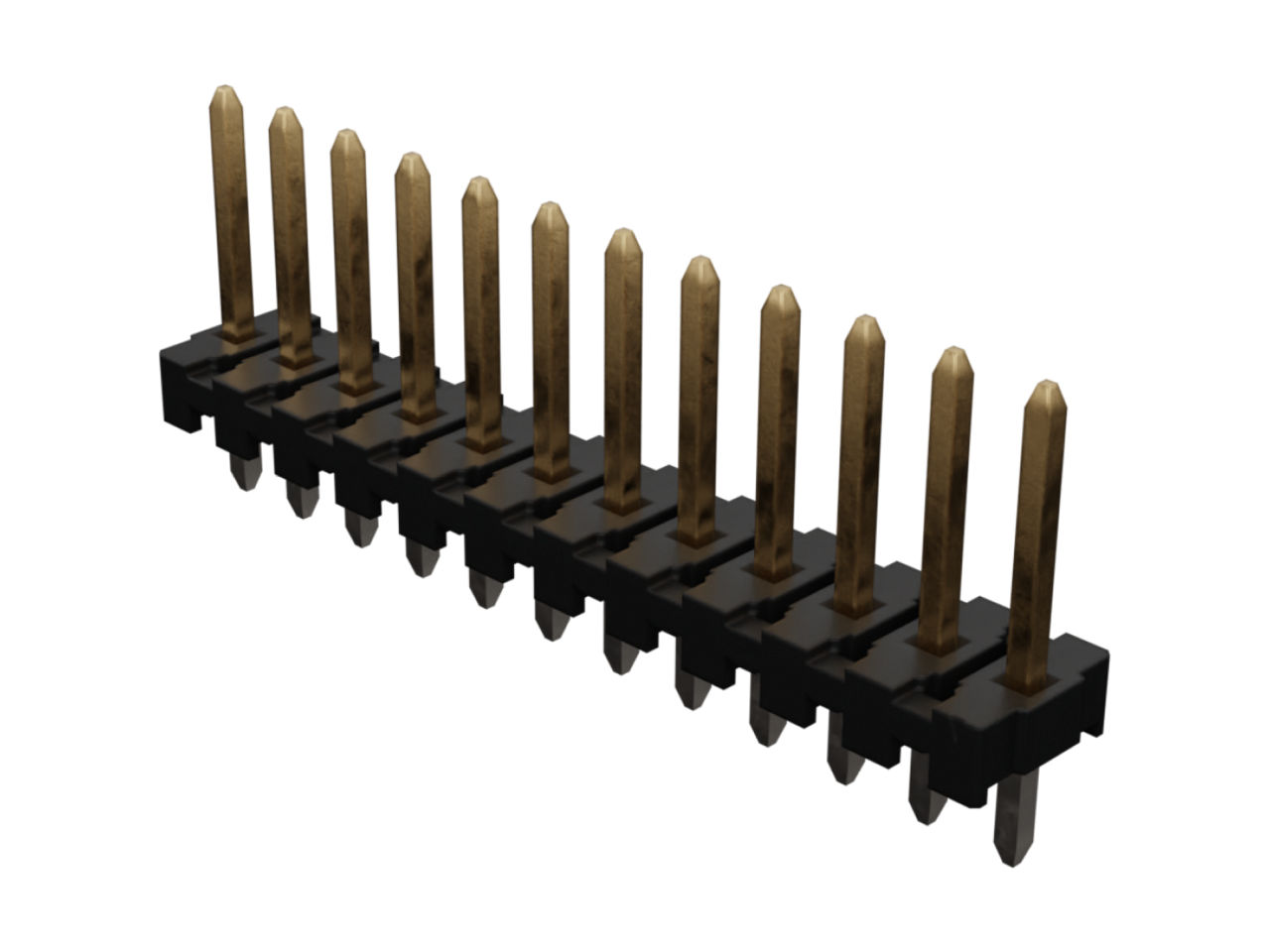

 | Molex 26-48-2121 | KK 396 Breakaway Header, Vertical, 12 Circuits, 0.50 | |
