03-09-1031

Heilind Number:	MOL03-09-1031
Manufacturer:	Molex
Manufacturer Number:	03-09-1031
Datasheet:	Datasheet
ECAD Model:

Description:

2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 3 Circuits, Single Row, Natural

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 03-09-1031
Color:	Natural
Series:	1396
Amperage:	14 A
Connector Type:	Standard .093"
Gender:	Receptacle
Number of Contacts:	3
Number of Rows:	1
Mount Type:	Panel Mount
Pitch:	5.03 mm
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Power
Connector System:	Wire to Wire
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Product Name:	Standard .093"
Material Flammability Standard:	94V-2
Part Aliases:	0003091031 1396-R
SKU:	MOL03-09-1031

Detailed Description

Introducing the Standard .093" Connector System, featuring a durable panel mount design for reliable wire-to-wire connections. This high-quality receptacle boasts three contacts in a single row, with a pitch of 5.03mm for easy installation. With an operating temperature range from -40 to 105°C, it's suitable for demanding power applications. RoHS compliant and featuring a lock to the mating part, this connector ensures both safety and security. Perfect for industrial settings, the 0.093 Connector System is a dependable solution for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 02-09-1102	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1189, Female, with Tin (Sn) Plated Brass Contact, 14-20 AWG, Reel
	Molex 02-09-1117	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1381, Female, with Tin (Sn) Plated Brass Contact, 18-22 AWG, Reel
	Molex 02-09-2103	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1190, Male, with Tin (Sn) Plated Brass Contact, 14-20 AWG, Bag
	Molex 02-09-2116	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1380, Male, with Tin (Sn) Plated Brass Contact, 18-22 AWG, Reel
	Molex 03-06-1044	1.57mm Diameter Standard .062 Pin and Socket Receptacle Housing, Dual Row, without Mounting Ears, PA Polyamide Nylon 6/6, UL 94V-2, 4 Circuits, Natural
	Molex 03-09-1022	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 2 Circuits, without Mounting Ears, with Ramps, Natural
	Molex 03-09-1027	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 2 Circuits, with Pre-bent Mounting Ears, with Ramps, Natural
	Molex 03-09-1032	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 3 Circuits, Single Row, Natural
	Molex 03-09-1041	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 4 Circuits, Single Row, Natural
	Molex 03-09-2022	2.36mm Diameter Standard .093 Pin and Socket Plug Housing, 2 Circuits, without Mounting Ears, Natural
	Molex 03-09-2031	2.36mm Diameter Standard .093 Pin and Socket Plug Housing, 3 Circuits, Single Row, Natural
	Molex 03-09-2032	2.36mm Diameter Standard .093 Pin and Socket Plug Housing, 3 Circuits, Single Row, Natural
	Molex 39-01-2065	Mini-Fit Jr. Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Natural
	Molex 39-01-2105	Mini-Fit Jr. Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Natural

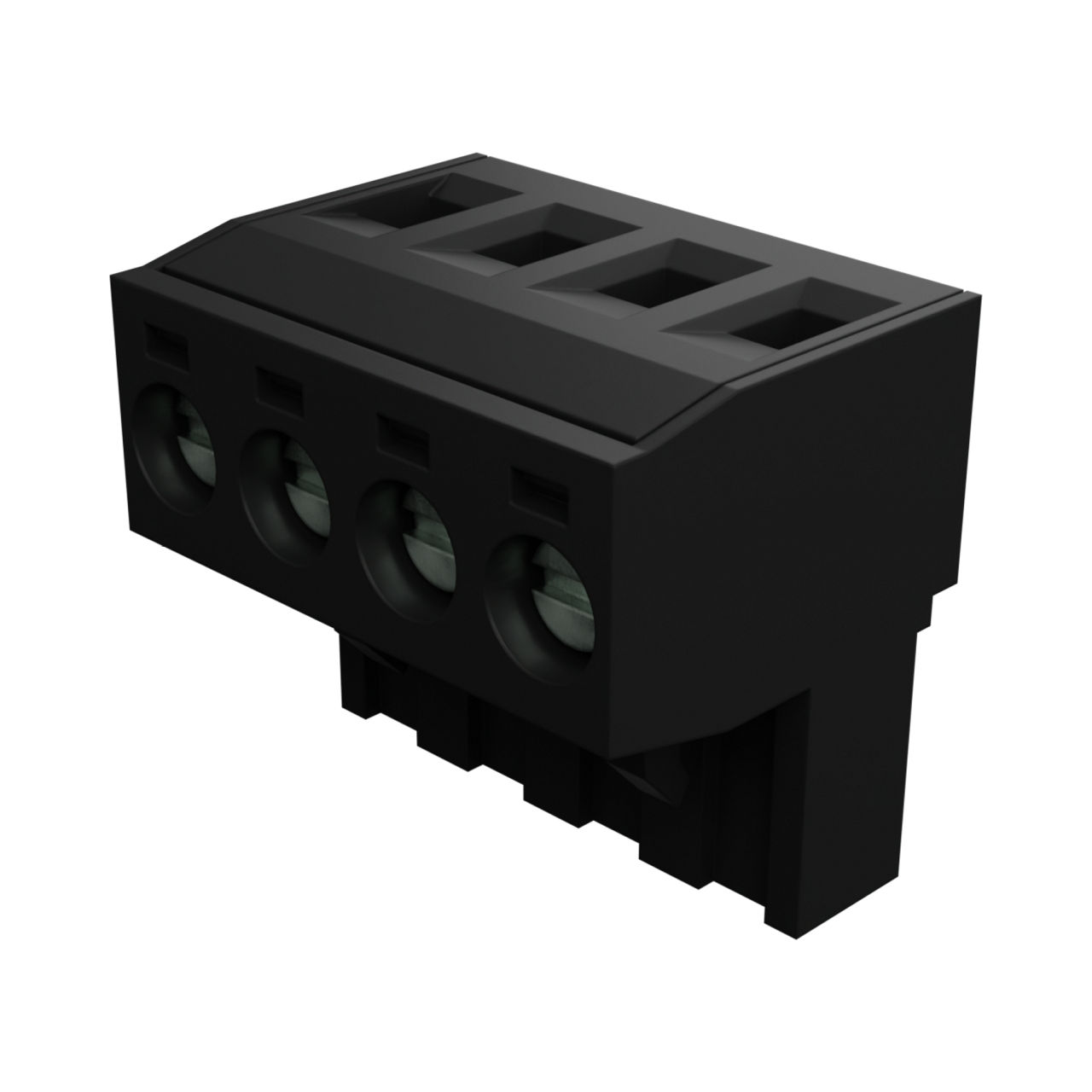

	Molex 39530-0004	5.08mm Pitch Eurostyle Horizontal Plug, 4 Circuits
	Molex 43640-0201	Micro-Fit 3.0 Plug Housing, Single Row, 2 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 43645-0200	Micro-Fit 3.0 Receptacle Housing, Single Row, 2 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 50-57-9404	SL Crimp Housing, Single Row, Version G, Positive Latch, 4 Circuits, Black

Product Change Notice

Effective Date	Description of Change				Download
05/31/2017	502061 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes and quantities. No changes will be made to the product as a result of the packaging change.				Download
