02-09-1615

Heilind Number:	MOL02-09-1615
Manufacturer:	Molex
Manufacturer Number:	02-09-1615
Datasheet:	RoHS Certificate of Compliance
ECAD Model:

Description:

2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 42477, Female, with Tin (Sn) Plated Contact, High Current/Low Engagement Force, 14-18 AWG, Reel

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Contacts
Manufacturer:	Molex
Manufacturer Part Number:	Molex 02-09-1615
Series:	42477 - Standard .093"
Connector Type:	Standard .093"
Gender:	Female
Termination Method:	Crimp or Compression
Contact Material:	Brass
Contact Plating:	Tin
Packaging:	Reel
Circuit Application:	Power
Contact Mating Area Plating:	Tin
Contact Mating Area Plating Thickness:	.508 µm
Contact Termination Plating Thickness:	.508 µm
Wire Size:	14 AWG, 16 AWG, 18 AWG
Connector System:	Wire to Wire
Contact Termination Plating:	Tin
Wire Insulation Diameter:	3.56 mm
Part Aliases:	0002091615 42477-0005
SKU:	MOL02-09-1615

Detailed Description

Introducing the 02-09-1615, a female Standard .093" connector designed for robust power applications. Crafted with brass contacts plated in tin, this connector ensures reliable conductivity. Suitable for 14-18 AWG wires, it accommodates a wire insulation diameter of 3.56mm. With a versatile crimp or compression termination method, it guarantees secure connections. Packaged conveniently on a reel, it streamlines assembly processes. RoHS compliant and featuring a 0.508 µm tin plating thickness, it offers both environmental responsibility and durability. Trust the 02-09-1615 for efficient wire-to-wire connections in your projects.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 03-09-1022	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 2 Circuits, without Mounting Ears, with Ramps, Natural
	Molex 19002-0010	Avikrimp Fully Insulated Quick Disconnect, Female, for 18-22 AWG Wire, Mylar Tape
	Molex 19002-0032	Avikrimp Fully Insulated Quick Disconnect, Female, for 14-16 AWG Wire, Mylar Tape
	Molex 19007-0040	Flag InsulKrimp Quick Disconnect, Female, for 10-12 (5.00-3.30mm?) Wire, Box, Tab 6.35 x 0.81mm
	Molex 19016-0043	Krimptite Quick Disconnect, Female, for 14-16 (2.00-1.30mm?) Wire, Mylar Tape, Tab 6.35 x 0.81mm
	Molex 19098-0091	Krimptite Snap Spade Terminal, for 10-12 AWG Wire, Stud Size 10 (M5), 19.60mm Length
	Molex 39-00-0038	Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel
	Molex 39-00-0040	Mini-Fit Male Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass Contact, Double 22+22 or Single 24-18 AWG, Reel
	Molex 39-01-2020	Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-2, Natural
	Molex 39-01-2065	Mini-Fit Jr. Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Natural
	Molex 39-01-4040	Mini-Fit Jr. Receptacle Housing, Single Row, 4 Circuits, UL 94V-2, Natural
	Molex 40-02-1601	Flat Blade Crimp Terminal, Series 41422, Female, With Tin (Sn) Plated Brass Contact, 10-12 AWG, Reel Packaged
	Molex 43030-0004	Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 30-26 AWG, Reel

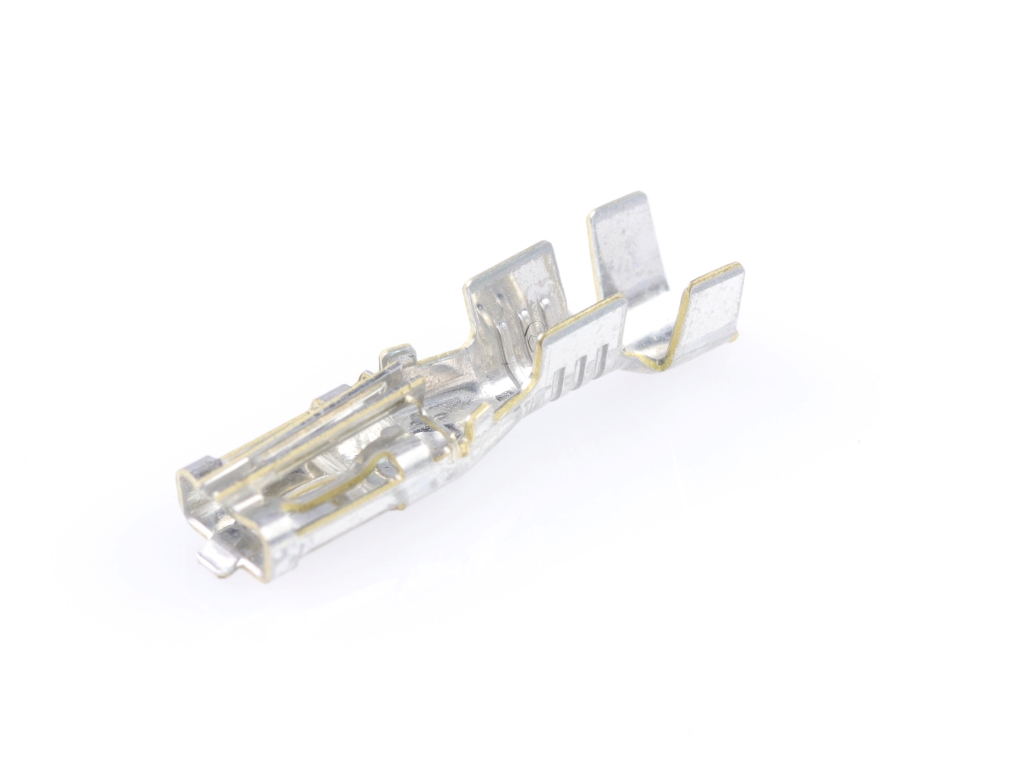

	Molex 43374-2001	Sabre Crimp Terminal, Female, 18-20 AWG, 2.85mm max. Insulation Diameter, Reel Packaged, Tin (Sn) Plated Brass Contact, without TPA
	Molex 44167-0001	Flat Blade Appliance Dryer Motor Crimp Housing, 6 Circuit, with Tool Removable Latch

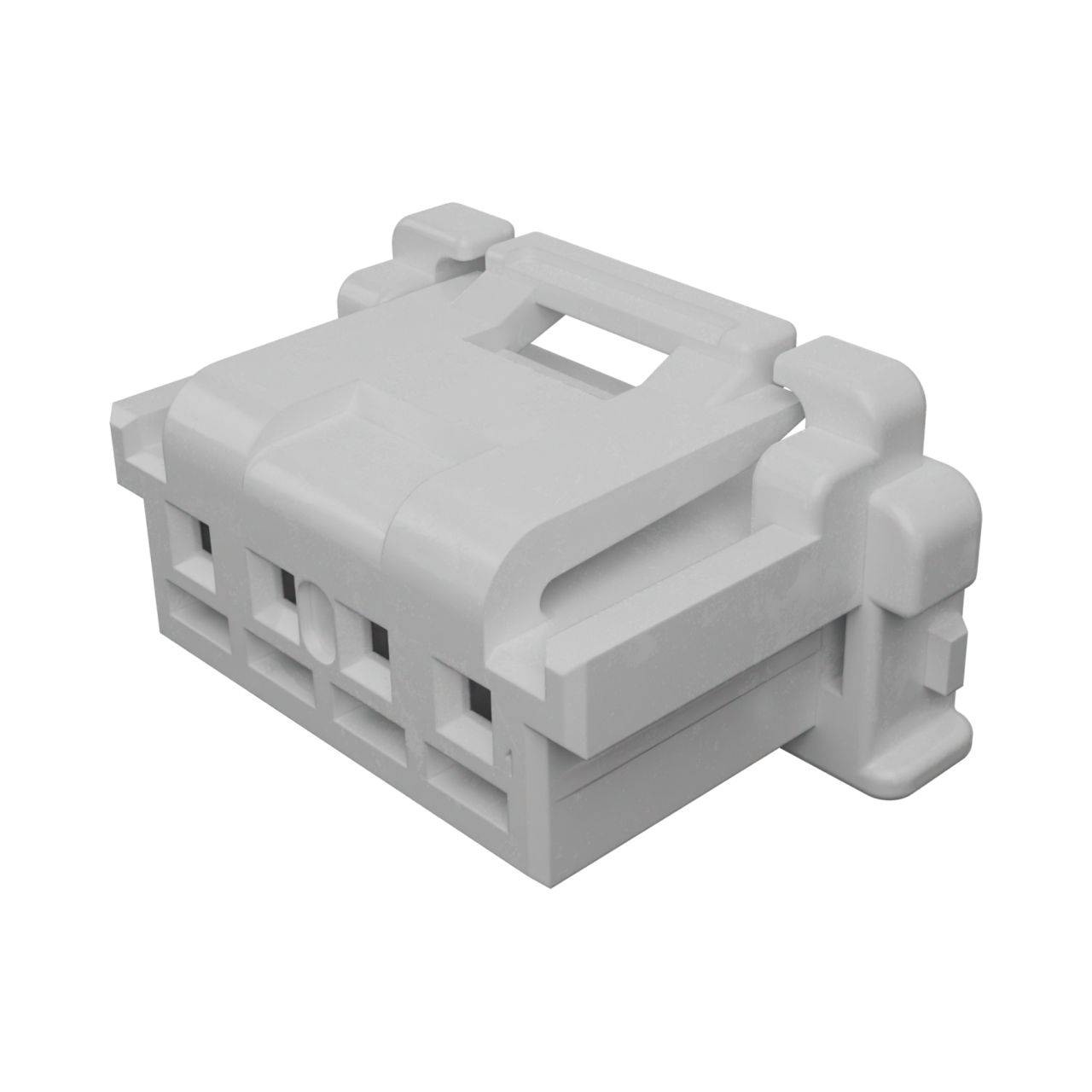

	Molex 505151-0401	DuraClik TPA Wire-to-Board Receptacle Housing, 4 Circuits, White
