| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09330006107 |
| Series: | Han E® |
| Gender: | Male |
| Termination Method: | Crimp |
| Contact Material: | Copper Alloy |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| Contact Resistance: | 1 mΩ |
| Mating Cycles: | 500 cycle |
| Wire Size: | 12 AWG |
| Contact Design: | Machined |
| Current Rating: | 16 A |
| Stripping Length: | 7.5 mm |
| SKU: | HRT09330006107 |
09330006107
| Heilind Number: | HRT09330006107 |
| Manufacturer: | HARTING |
| Manufacturer Number: | 09330006107 |
| Datasheet: | Datasheet |
| ECAD Model: | |
Description:
HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique
More >>Specifications
Detailed Description
HARTING's Han E® male crimp contact, featuring a 4 MM2 capacity, offers reliable termination for high-power applications. Constructed from a durable copper alloy with silver plating, this contact ensures excellent conductivity and corrosion resistance. With a wide operating temperature range of -40 °C to 125 °C, it is suitable for use in harsh environments. The machined contact design guarantees precision and consistency in signal transmission, while the 12 AWG wire size and 7.5 mm stripping length make installation easy. Rated for 16 A current, with a low contact resistance of 1 mΩ and a lifespan of 500 mating cycles, this contact is a dependable solution for industrial connectivity needs. Fully RoHS compliant, it meets strict environmental standards.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | HARTING 09120053001 | insert, Size: 3 A, male |  |
 | HARTING 09140022741 | Han® 70 A module, female, 2 contacts, 70 A, 1000 V | |
 | HARTING 09140033001 | Han® C module, male, 3 contacts, 40 A, 690 V | |
 | HARTING 09140060313 | Hinged frame, zinc die-cast, Size: 6 B | |
 | HARTING 09140060371 | Han-Modular®, Hinged frame, for 2 modules, a ... b; Size: 6 B | |
 | HARTING 09140063001 | Han E® module, male, 6 contacts, 16 A, 500 V | |
 | HARTING 09140063101 | Han E® module, female, 6 contacts, 16 A, 500 V | |
 | HARTING 09150006101 | Crimp contact, male, 1.5 MM2 | |
 | HARTING 09150006103 | Crimp contact, male, 0.5 MM2 | |
 | HARTING 09300240731 | Hoods, cable to cable, 24 B, aluminium die-cast, powder-coated, IP65 | |
 | HARTING 09320006108 | Crimp contact, male, 6 MM2 | |
 | HARTING 09330006102 | Crimp contact, male, 2.5 MM2 | |
 | HARTING 09330006109 | Relay contact, male | |
 | HARTING 09330006202 | Crimp contact, female, 2.5 MM2 | |
 | HARTING 09330006207 | Crimp contact, female, 4 MM2 | |

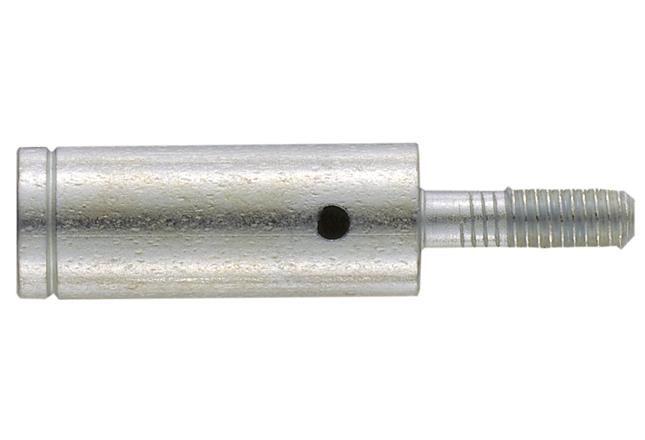

 | HARTING 09330009909 | Coding Element, female, metallic | |
 | HARTING 09330009925 | PE screw | |
 | HARTING 19200031445 | Han 3A-Hood Top Entry M25 | |
