09047326831

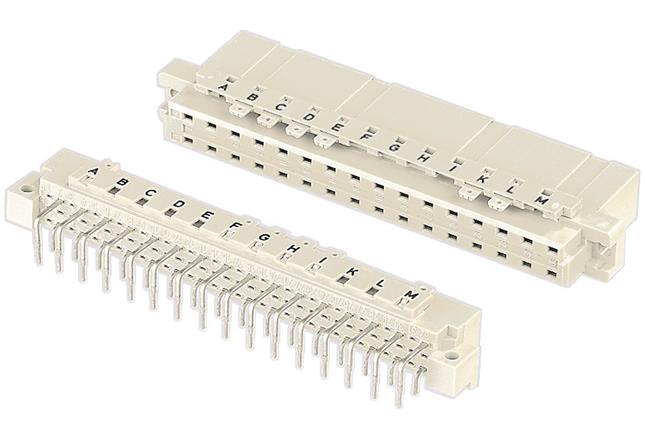

Introducing the 09047326831, a high-performance DIN 41612 Type D Female Connector designed for seamless motherboard to daughtercard and mezzanine connectivity. This connector, featuring a durable thermoplastic resin housing reinforced with glass fibers, ensures reliable performance in demanding environments. With 32 contacts arranged in 2 rows and a solder termination method, it offers secure and efficient connectivity. The copper alloy contacts with tin over nickel plating guarantee excellent conductivity and corrosion resistance. Rated for a maximum operating temperature of 125°C and with a low -55°C minimum operating temperature, this connector is suitable for a wide range of applications. Its straight mount angle, 5.08mm pitch, and 4.5mm tail length make it easy to install, while its UL 94V-0 flammability rating provides added safety. With a current rating of 6A and a voltage rating of 1.55kV, this connector is ideal for use in various board-to-board and PCB applications. Trust in the reliability and performance of the 09047326831 connector for your connectivity needs.
