09043326921

HRT09043326921
Heilind Number:HRT09043326921
Manufacturer:HARTING
Manufacturer Number:09043326921
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

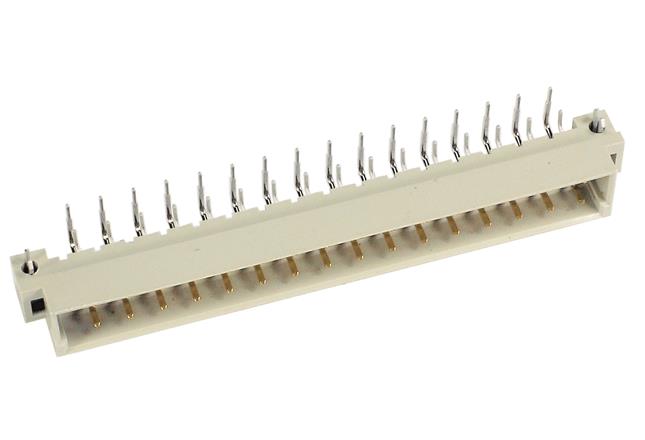

DIN 41612, Type D, Connector; Male connector; Thermoplastic resin, glass-fibre filled; Motherboard to daughtercard, Extender card, PCB to cable

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09043326921
Color:Pebble Gray
Pitch:5.08 mm
Gender:Male
Series:DIN 41612
Mount Angle:Right Angle
Mating Cycles:400 cycle
Current Rating:6 A
Number of Rows:2
Voltage Rating:1.55 kV
Contact Plating:Noble Metal Over Nickel, Tin Over Nickel
Contact Material:Copper Alloy
Housing Material:Glass-Filled Plastic
Number of Contacts:32
Termination Method:Solder
Flammability Rating:UL 94V-0
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
SKU:HRT09043326921

Detailed Description

Introducing the 09043326921, a high-performance DIN 41612 Type D male connector designed for seamless motherboard to daughtercard, extender card, and PCB to cable connections. Crafted from durable thermoplastic resin with glass-fibre filling, this connector ensures reliable performance in a wide range of applications. With 32 contacts arranged in 2 rows and a secure solder termination method, it guarantees efficient signal transmission. Featuring copper alloy contacts plated with tin over nickel and a maximum operating temperature of 125°C, it offers excellent conductivity and durability. RoHS compliant and boasting a voltage rating of 1.55 kV, this pebble gray connector is a dependable choice for your board to board PCB connectivity needs.
