| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose LF13WBJ-11S |
| Series: | LF |
| Gender: | Female |
| Housing Material: | Metal |
| Number of Contacts: | 11 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -25 °C |
| IP Rating: | IPX8 |
| Shell Size: | 13 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Seal Material: | Chloroprene Rubber |
| Shell Size - Insert Arrangement: | 13-11 |
| Mating Cycles: | 1000 cycle |
| Wire Size: | 26 AWG |
| Shell Finish: | Nickel |
| Current Rating: | 10 A |
| Voltage Rating: | 125 V |
| SKU: | HIRLF13WBJ-11S |

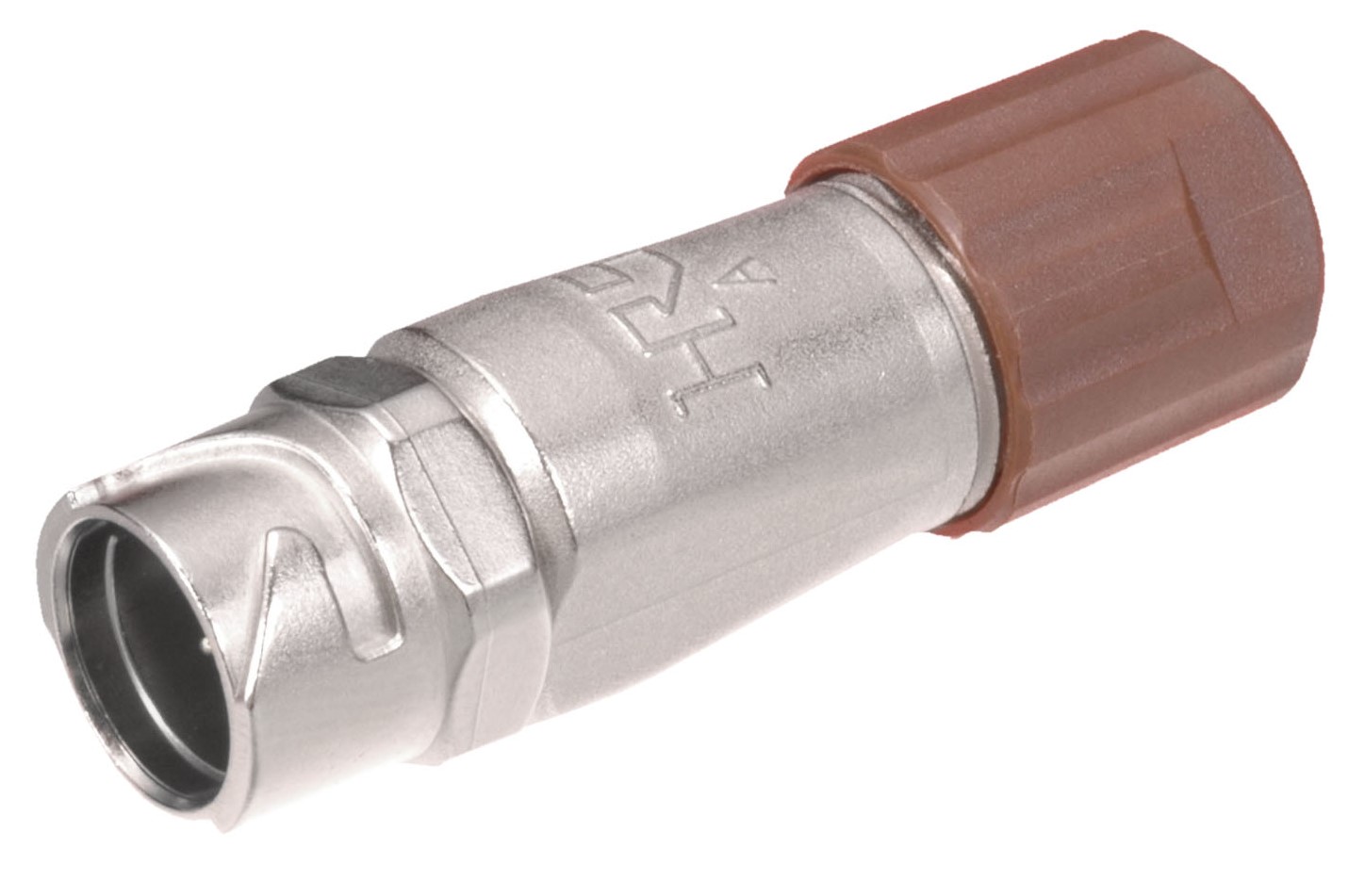

LF13WBJ-11S
| Heilind Number: | HIRLF13WBJ-11S |
| Manufacturer: | Hirose |
| Manufacturer Number: | LF13WBJ-11S |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the LF13WBJ-11S, a high-performance circular connector designed for reliable signal and power transmission in demanding environments. This female connector, part of the LF series, features a durable metal housing and gold contact plating, ensuring excellent conductivity and resistance to corrosion. With 11 contacts and a current rating of 10 A at 125 V, it is suitable for a wide range of applications. The panel mount, solder termination design with a straight bayonet mating type offers secure and easy installation. Rated for temperatures ranging from -25 °C to 85 °C and IPX8 sealed with chloroprene rubber, this connector guarantees dependable performance even in harsh conditions. RoHS compliant and boasting a long mating cycle of 1000, the LF13WBJ11S is the perfect choice for industrial and outdoor use.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 04/18/2025 | PC-0049922 - Additional Production Location. Target parts: Code tube, Sleeve, P shell, R shell Production using the current die ⇒ Production using the additional die Supplier: Company T ⇒ Company S will be added. Since there is no design change, there is no change in product specifications and performance. | Download | |||
| 12/30/2024 | PC-0046912 - Additional Production Location. As for the assembly process, we will add the Hirose Ichinoseki factory in addition to Company A. There will be no change in manufacturing equipment. | Download | |||
| 05/31/2024 | PC-0042442 - Production location addition. The manufacturing process of assembly will be performed by Company A + Company B + Company C. There is no change in the component supplier. | Download | |||
| 02/11/2022 | HIR-430-021018 - UL Clarification. Recently, Toray Industries, Inc.,(Hereinafter Toray) announced that certain resin products were improperly identified by Toray as receiving certification from Underwriters Laboratories (hereinafter, "UL"). | Download | |||
