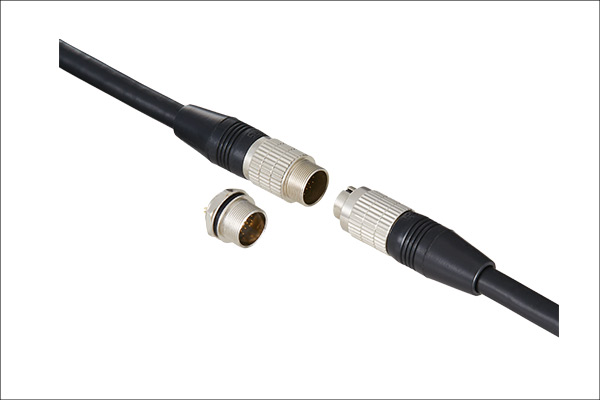

HR25-7TP-8S(72)
125-0006-1-72 EACH
The HR25-7TP-8S(72), a high-performance female circular connector designed for reliable signal transmission in demanding environments. Featuring a durable metal housing and gold contact plating, this connector ensures secure and low-resistance connections, even in harsh conditions. With a panel mount and solder termination, it offers easy and stable installation. Rated for a maximum operating temperature of 85°C and a minimum of -25°C, it guarantees performance in a wide range of settings. The 7-8 shell size insert arrangement, along with a straight screw mating type, provides efficient and convenient connectivity. With a current rating of 1A and a voltage rating of 30VAC, this connector is suitable for various applications. RoHS compliant and with a mating cycle of 1000, it offers both reliability and environmental responsibility. The HR25-7TP-8S(72) is a must-have for any project requiring high-quality circular connectors.
Details
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose HR25-7TP-8S(72) |
| Series: | HR25 |
| Gender: | Female |
| Housing Material: | Metal |
| Number of Contacts: | 8 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -25 °C |
| Shell Size: | 7 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Shell Size - Insert Arrangement: | 7-8 |
| Mating Cycles: | 1000 cycle |
| Shell Finish: | Nickel |
| Current Rating: | 1 A |
| Voltage Rating: | 30 VAC |
| SKU: | HIRHR25-7TP-8S(72) |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
Product Change Notice
Product Change Notice
| Effective Date | Description of Change | Download |
|---|---|---|
| 01/01/2015 | 430-14143 - Product Change. Precoat Processed Bolts. | Download |
