| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose HIF3BA-20D-2.54R(63) |
| Series: | HIF3B |
| Gender: | Female |
| Housing Material: | Polybutylene Terephthalate |
| Number of Contacts: | 20 |
| Number of Rows: | 2 |
| Termination Method: | IDC |
| Contact Material: | Beryllium Copper |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Polarization: | Yes |
| Housing Color: | Black |
| Mating Cycles: | 500 cycle |
| Wire Size: | 28 AWG |
| Current Rating: | 1 A |
| Voltage Rating: | 200 VAC |
| SKU: | HIRHIF3BA-20D-2.54R(63) |

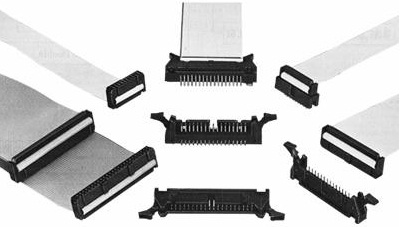

HIF3BA-20D-2.54R(63)
.jpg)
| ICC Number: | HIRHIF3BA-20D-2.54R(63) |
| Manufacturer: | Hirose |
| Manufacturer Number: | HIF3BA-20D-2.54R(63) |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the HIF3B series female IDC ribbon cable connector, a high-quality solution for your connectivity needs. With 20 gold-plated beryllium copper contacts arranged in 2 rows on a 2.54mm pitch, this connector ensures reliable transmission in a wide range of applications. The black Polybutylene Terephthalate housing offers durability and protection, with a straight mount angle for easy installation. Featuring a polarized design for error-free mating, this connector is rated for 500 cycles and operates flawlessly in temperatures ranging from -55°C to 85°C. RoHS compliant and suitable for use with 28AWG wires, it has a current rating of 1A and a voltage rating of 200VAC, making it ideal for various industries. Trust in the HIF3B20D254R63 for secure and efficient connections in your projects.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 06/01/2026 | PCN2025-06-7 - PCN Revision LTB Date extended for those that are not staying the same to 12/18/26 per Email (After change: December 25, 2026……(Although we suggest December 18, 2026 for US due to Time zone differences, holidays & PO Processing) | Download | |||
| 03/02/2026 | PCN2025-06-4 - PCN Typographical errors fixed. Attached with PCN2025-06, Version 4. There are typographical errors in the type names for H➃ and H⑦ on page 3 of the document titled "Attachment 2_Changes" (which corresponds to page 8 of the full | Download | |||
| 03/02/2026 | PCN2025-06-5 - PCN revision. We would like to inform you that the substitute proposal product for the item listed below contained an error, which has now been corrected. Regarding page 3 of the detailed document for the changes in Appendix 2, we have made the following two corrections: The shape diagram in “Change 1” has been revised.“Change 5” has been added. | Download | |||
| 02/27/2026 | PCN2025-06-2 - Spec and part number change. Change from HIF3,B, C, M Series to HIF3M*W Series 1. Change the lock shape (operation part) of the board-side connector to a wide type. 2. Change the plating specification of the pin header terminals of the board-side connector. 3. Change the clamp parts of the press-fit socket-side connector to a wide type. 4. Change the plating specification of the cable press-fit side (U-slit part) of the press-fit socket-side connector. LTB for Old product 5/29/26 | Download | |||
| 12/03/2025 | PCN2025-06-6 - Added Details Regarding Change. Added Details Regarding Change | Download | |||
| 11/01/2022 | PG-22-012B - Adding new manufacturer for the resin in addition to current manufacturer. There is no change on product specifications and connector UL recognition File No. (E52563) We will inform you again after we receive UL recognition for the resin made by another manufacturer. | Download | |||
| 02/11/2022 | HIR-430-021018 - UL Clarification. Recently, Toray Industries, Inc.,(Hereinafter Toray) announced that certain resin products were improperly identified by Toray as receiving certification from Underwriters Laboratories (hereinafter, "UL"). | Download | |||
