| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose DF40HC(3.0)-100DS-0.4V(58) |
| Pitch: | 0.4 mm |
| Gender: | Female |
| Mount Type: | Surface Mount |
| Mount Angle: | Straight |
| Housing Color: | Black |
| Current Rating: | 0.3 A |
| Number of Rows: | 2 |
| Voltage Rating: | 50 V |
| Contact Plating: | Gold |
| Contact Material: | Phosphor Bronze |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 100 |
| Flammability Rating: | UL 94V-0 |
| Mated Stacking Height: | 3 mm |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| Series: | DF40 |
| SKU: | HIRDF40HC(3.0)100DS0.4V58 |

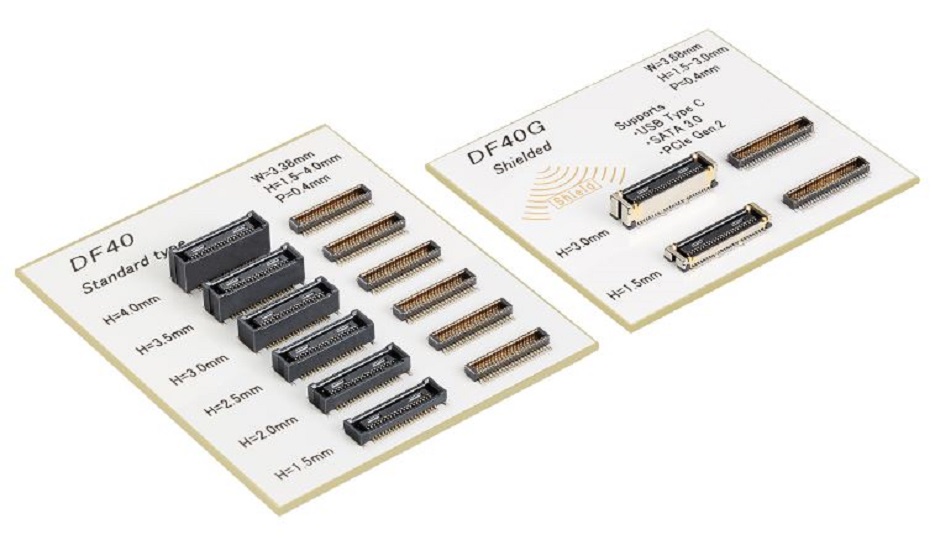

DF40HC(3.0)-100DS-0.4V(58)
100DS0.4V58.jpg)
| ICC Number: | HIRDF40HC(3.0)100DS0.4V58 |
| Manufacturer: | Hirose |
| Manufacturer Number: | DF40HC(3.0)-100DS-0.4V(58) |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the DF40HC(3.0)-100DS-0.4V(58), a high-performance female connector from the DF40 series. This Surface Mount connector features a robust Liquid Crystal Polymer housing in sleek black, ensuring durability and reliability in a wide temperature range from -55°C to 85°C. With 100 gold-plated phosphor bronze contacts arranged in 2 rows and a narrow 0.4mm pitch, it offers precise and efficient connectivity for your applications. UL 94V-0 rated for safety, this connector is ideal for high-density designs, with a low mated stacking height of 3mm. RoHS compliant and rated for 50V and 0.3A, it guarantees quality and performance. Upgrade your connectivity solutions with the DF40HC30100DS04V58.
