DF22-3P-7.92DSA(53)
680-1015-0-53

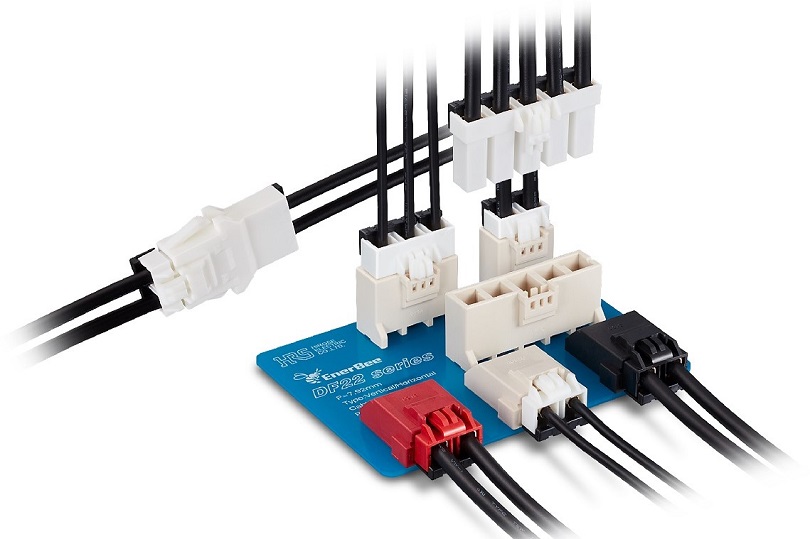

The DF22 series Beige Male Board-to-Board Connector, with SKU DF22-3P-7.92DSA(53), offers high reliability in PCB connections. Featuring a durable Nylon housing and three Gold-plated Copper Alloy contacts, it ensures efficient signal transmission. With a wide operating temperature range from -55°C to 85°C and a voltage rating of 1000 VAC, this connector is suitable for various applications. Its straight through-hole mount type and solder termination method guarantee secure and stable installation. Rated for 30 mating cycles and with a current rating of 25 A, it is ideal for high-performance systems. Additionally, this connector is RoHS compliant, meeting environmental standards. Perfect for use in industrial and commercial electronic devices, the DF22-3P-7.92DSA(53) is a reliable and high-quality connectivity solution.
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose DF22-3P-7.92DSA(53) |
| Color: | Beige |
| Series: | DF22 |
| Gender: | Male |
| Housing Material: | Nylon |
| Number of Contacts: | 3 |
| Number of Rows: | 1 |
| Mount Type: | Through Hole |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 7.92 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 30 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 25 A |
| Voltage Rating: | 1000 VAC |
| SKU: | HIRDF22-3P-7.92DSA(53) |
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
Product Change Notice
| Effective Date | Description of Change | Download |
|---|---|---|
| 04/30/2023 | PUR-22-028E - Additional Resin Material Supplier. This is to ensure the stability of material supply. | Download |
| 01/05/2023 | PC-0025467 - Die Mold Replacement & Material Change. Before change: The molds at Koriyama Factory in Japan are aging & Use Toray PM-M NC BEIGE CM3004G15(A) material After Change: The new molds are manufactured at Jingxing Factory in Dongguan, China. & Use Asahi Kasei FG170 371 material. | Download |
| 11/01/2022 | PG-22-012B - Adding new manufacturer for the resin in addition to current manufacturer. There is no change on product specifications and connector UL recognition File No. (E52563) We will inform you again after we receive UL recognition for the resin made by another manufacturer. | Download |
| 02/11/2022 | HIR-430-021018 - UL Clarification. Recently, Toray Industries, Inc.,(Hereinafter Toray) announced that certain resin products were improperly identified by Toray as receiving certification from Underwriters Laboratories (hereinafter, "UL"). | Download |
