DF17(4.0)-60DP-0.5V(57)
HIRDF17(4.0)-60DP-0.5V(57

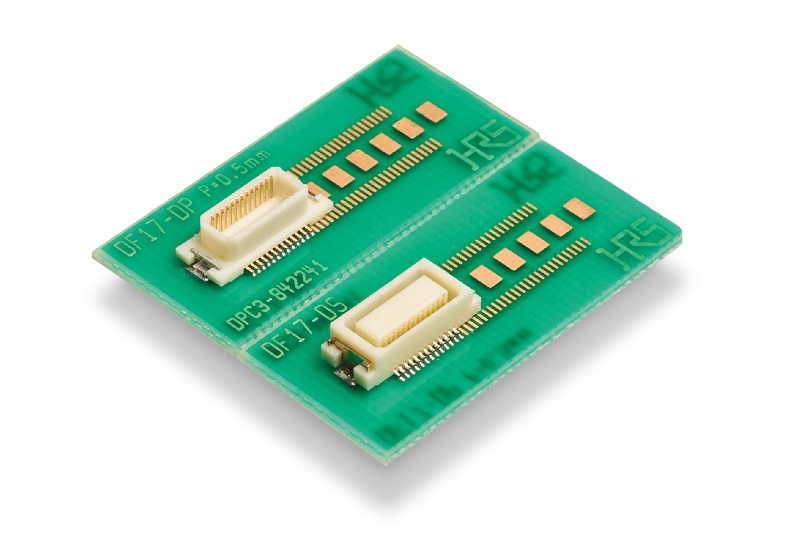

The DF17(4.0)-60DP-0.5V(57)) Beige male connector, a high-performance solution for your board-to-board PCB connectivity needs. This surface-mount connector, part of the DF17 series, features a durable nylon housing and 60 gold-plated phosphor copper contacts for reliable signal transmission. With a pitch of 0.5mm and a straight mount angle, it offers precise and secure connections in tight spaces. Rated for up to 50 mating cycles, this connector ensures long-term durability. Its UL 94V-0 flammability rating and RoHS compliance guarantee safety and environmental responsibility. Suitable for various applications, from consumer electronics to industrial devices, the DF174060DP05V57 is a versatile and dependable choice for your connectivity requirements.
Details
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose DF17(4.0)-60DP-0.5V(57) |
| Color: | Beige |
| Series: | DF17 |
| Gender: | Male |
| Housing Material: | Nylon |
| Number of Contacts: | 60 |
| Number of Rows: | 2 |
| Mount Type: | Surface Mount |
| Termination Method: | Solder |
| Contact Material: | Phosphor Copper |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -35 °C |
| Pitch: | 0.5 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 50 cycle |
| Shroud Type: | Yes |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 0.3 A |
| Voltage Rating: | 50 VAC |
| SKU: | HIRDF17(4.0)-60DP-0.5V(57 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
