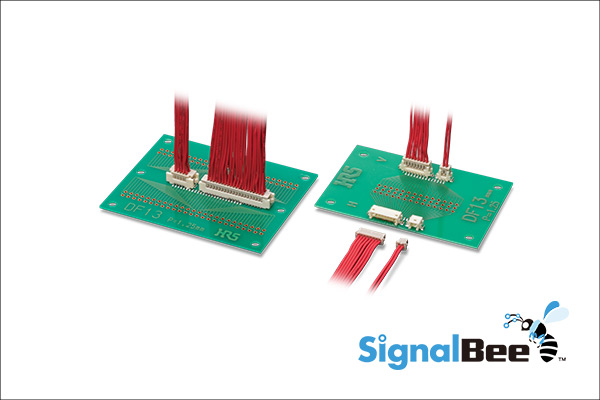

DF13-4P-1.25DS(55)
HIRDF13-4P-1.25DS(55)
The DF13-4P-1.25DS(55) connector, a versatile and reliable solution for your board-to-board PCB connection needs. This male connector, part of the DF13 series, features a durable nylon housing and four brass contacts for secure and efficient signal transmission. With a compact 1.25mm pitch and right-angle mount, it's perfect for space-constrained applications. Rated for 1A current and 150VAC, this connector is suitable for a wide range of electronic devices. Its solder termination method ensures a strong and permanent connection, while its friction mating type simplifies installation. RoHS compliant and with a wide operating temperature range from -35°C to 85°C, the DF13 connector is ideal for use in various industries. Upgrade your connectivity with this high-quality and performance-driven component.
Details
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose DF13-4P-1.25DS(55) |
| Series: | DF13 |
| Gender: | Male |
| Housing Material: | Nylon |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Mount Type: | Through Hole |
| Termination Method: | Solder |
| Contact Material: | Brass |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -35 °C |
| Pitch: | 1.25 mm |
| Mating Type: | Friction |
| Mount Angle: | Right Angle |
| Current Rating: | 1 A |
| Voltage Rating: | 150 VAC |
| SKU: | HIRDF13-4P-1.25DS(55) |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
Product Change Notice
Product Change Notice
| Effective Date | Description of Change | Download |
|---|---|---|
| 04/30/2023 | PUR-22-028E - Additional Resin Material Supplier. This is to ensure the stability of material supply. | Download |
| 11/01/2022 | PG-22-012B - Adding new manufacturer for the resin in addition to current manufacturer. There is no change on product specifications and connector UL recognition File No. (E52563) We will inform you again after we receive UL recognition for the resin made by another manufacturer. | Download |
