| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 392-052-521-204 |
| Color: | Black |
| Amperage: | 3 A |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.1 in |
| Row Spacing: | .2 in |
| Number of Positions: | 52 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Through Hole |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1200 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 52 |
| Termination Method: | Solder |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA392-052-521-204 |
392-052-521-204
| ICC Number: | EDA392-052-521-204 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 392-052-521-204 |
| ECAD Model: | |
Specifications
Detailed Description

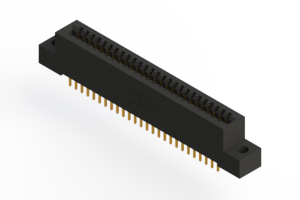

Introducing the 392-052-521-204 Card Edge Connector, a crucial component for seamless board-to-board PCB connections. This black connector, with a low amperage of 3 A, features durable UL 94V-0 Thermoplastic Polyester housing and high-performance copper alloy contacts. With two rows and 52 positions spaced at a pitch of .1 inches, it ensures reliable and efficient connectivity in compact spaces. Designed for straight mounting orientation, it operates flawlessly in a wide temperature range from -40 to 105 °C. Trust in the quality and precision of this connector for your electronic applications.
