| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 346-028-521-812 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.125 in |
| Row Spacing: | .2 in |
| Number of Positions: | 28 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Through Hole |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1500 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 28 |
| Termination Method: | Solder |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA346-028-521-812 |
346-028-521-812
| ICC Number: | EDA346-028-521-812 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 346-028-521-812 |
| ECAD Model: | |
Specifications
Detailed Description

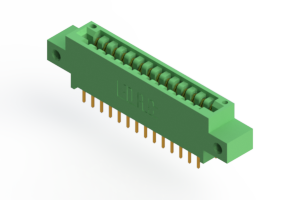

Introducing our 346-028-521-812 Card Edge Connectors, essential components for seamless board-to-board PCB connections. Designed with precision and durability in mind, these connectors feature a vibrant green housing made of UL 94V-0 Thermoplastic Polyester, ensuring safety and reliability. With two rows of copper alloy contacts, each rated for 3A, they guarantee efficient power and signal transmission. The .125-inch pitch and .2-inch row spacing, along with 28 positions, offer versatile connectivity options. Engineered for optimal performance even in harsh environments, they boast an operating temperature range of -40 to 105°C. Trust in the quality and functionality of our Card Edge Connectors for your electronic applications.
