| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 346-026-522-202 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.125 in |
| Row Spacing: | .2 in |
| Number of Positions: | 26 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Through Hole |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1500 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 26 |
| Termination Method: | Solder |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA346-026-522-202 |

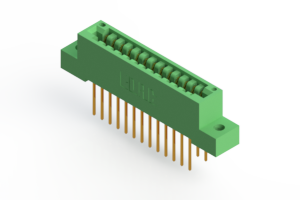

346-026-522-202
| ICC Number: | EDA346-026-522-202 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 346-026-522-202 |
| ECAD Model: | |
Specifications
Detailed Description
Introducing our 346-026-522-202 Card Edge Connectors, designed for high-performance board-to-board connections in electronic applications. With a sleek green housing made of UL 94V-0 Thermoplastic Polyester, these connectors offer both durability and safety. Featuring two rows of 26 copper alloy contacts, they ensure reliable power and signal transmission with a low amperage of 3A. The 0.125-inch pitch and 0.2-inch row spacing allow for efficient PCB layout, while the straight mount orientation simplifies installation. Operating flawlessly in temperatures ranging from -40 to 105°C, these connectors are a dependable choice for your projects. Upgrade to the 346-026-522-202 and experience seamless connectivity in your electronic designs.
