337-076-559-808

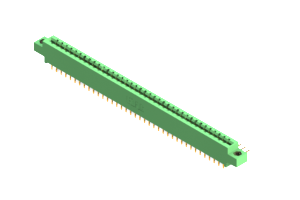

Card Edge Connector
The 337-076-559-808 Card Edge Connector, a vital component for seamless board-to-board PCB connections. Designed for high-performance applications, this connector boasts a durable UL 94V-0 Thermoplastic Polyester housing that ensures reliable operation even in demanding environments. With two rows of 76 copper alloy contacts, it offers optimal conductivity and signal integrity. The right-angle mount orientation allows for easy and space-efficient installation, while the .156-inch pitch and .2-inch row spacing accommodate standard PCB layouts. Rated for an operating temperature range of -40 to 105°C, this connector is suitable for a wide range of industrial applications. Trust in the 337-076-559-808 for efficient and secure board-to-board connectivity in your projects.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-076-559-808 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 76 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-076-559-808 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
