337-076-559-202

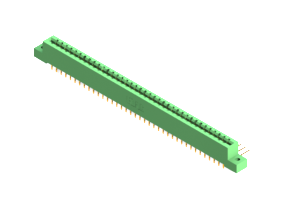

Card Edge Connector
Introducing our 337-076-559-202 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This two-row connector features 76 positions, allowing for seamless board-to-board connections with a pitch of .156 inches. Crafted with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it guarantees reliable performance even in harsh environments. With a low-profile right-angle mount orientation, it's perfect for space-constrained applications. Rated for 3A of current and operating temperature range of -40 to 105°C, this connector ensures robust and dependable connectivity in a wide range of settings. Upgrade your system's connectivity with the 337-076-559-202 Card Edge Connector.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-076-559-202 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 76 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-076-559-202 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
