337-076-555-858
Card Edge Connector

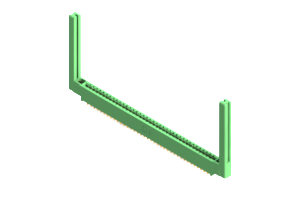

The 337-076-555-858, a high-performance Card Edge Connector designed for seamless board-to-board connections. With a vibrant Green color, this connector adds a pop of visual interest to your electronic assemblies. Engineered for reliability, it boasts a low amperage of 3A and is constructed from durable UL 94V-0 Thermoplastic Polyester housing material. Featuring two rows of copper alloy contacts, spaced at .156 inches with .2 inches between rows, it offers a total of 76 positions for secure connectivity. Its straight mount orientation and wide operating temperature range of -40 to 105°C ensure versatility in various applications. Trust in the 337-076-555-858 for efficient and dependable card edge connections in your projects.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-076-555-858 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 76 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-076-555-858 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
