| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-076-524-878 |
| Gender: | Female |
| Number of Contacts: | 76 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-076-524-878 |
337-076-524-878
Specifications
Detailed Description

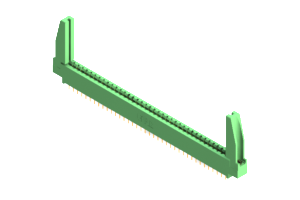

Introducing the 337-076-524-878, a high-performance Card Edge Connector designed for seamless board-to-board connectivity in electronic applications. With its sleek green housing constructed from UL 94V-0 Thermoplastic Polyester, this connector ensures robust and reliable performance, even in demanding environments. Featuring two rows of copper alloy contacts, each rated for 3A, and a total of 76 positions, it offers ample connectivity options for your PCBs. The .156-inch pitch and .2-inch row spacing allow for easy and secure installations. Engineered for efficiency, this connector boasts a straight mount orientation and operates flawlessly in a wide temperature range from -40 to 105°C. Whether you're working on consumer electronics or industrial systems, the 337-076-524-878 is the perfect solution for your card edge connectivity needs.
