| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-076-524-802 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 76 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 76 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-076-524-802 |
337-076-524-802
| ICC Number: | EDA337-076-524-802 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-076-524-802 |
| ECAD Model: | |
Specifications
Detailed Description

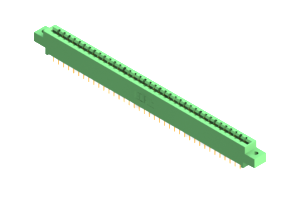

Introducing the 337-076-524-802 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This two-row connector features 76 positions, allowing for seamless board-to-board connections with a pitch of .156 inches. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures longevity and secure transmission. With a current rating of 3A and operating temperature range of -40 to 105°C, it is suitable for a wide range of applications. The green color coding and straight mount orientation make it easy to install and maintain. Trust in the quality and efficiency of the 337-076-524-802 for your connectivity requirements.
