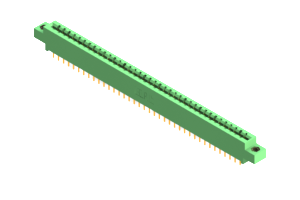

337-076-523-807
Card Edge Connector
The 337-076-523-807 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This two-row connector features 76 positions, allowing for seamless board-to-board connections. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures reliable performance in a wide range of applications. With a low .156-inch pitch and .2-inch row spacing, it offers efficient signal transmission. The green color coding and straight mount orientation make for easy identification and installation. Rated for an operating temperature range of -40 to 105 °C, this connector is suitable for use in harsh environments. Upgrade your system with the 337-076-523-807 for dependable and high-speed connectivity.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-076-523-807 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 76 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-076-523-807 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
