| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-074-560-207 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 74 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Through Hole |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 74 |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-074-560-207 |
337-074-560-207
| ICC Number: | EDA337-074-560-207 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-074-560-207 |
| ECAD Model: | |
Specifications
Detailed Description

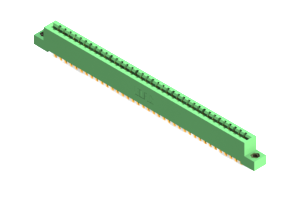

Introducing the 337-074-560-207 Card Edge Connector, a crucial component for seamless board-to-board PCB connections in electronic devices. Designed for high performance, this connector boasts a green housing made of UL 94V-0 Thermoplastic Polyester, ensuring durability and safety. With two rows of copper alloy contacts, each with a pitch of .156 inches and 74 positions, it guarantees reliable connectivity. The straight mount orientation and .2-inch row spacing offer easy installation, while its low operating temperature of -40°C and high operating temperature of 105°C make it suitable for a wide range of environments. Trust in the 337-074-560-207 for efficient and secure PCB connections in your electronic applications.
