| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-074-523-803 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 74 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 74 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-074-523-803 |
337-074-523-803
| ICC Number: | EDA337-074-523-803 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-074-523-803 |
| ECAD Model: | |
Specifications
Detailed Description

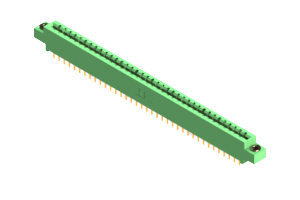

Introducing the 337-074-523-803 Card Edge Connector, a vital component for seamless board-to-board PCB connections. Crafted from durable UL 94V-0 Thermoplastic Polyester housing material and featuring two rows of copper alloy contacts, this connector ensures reliable performance in demanding environments. With a low 3A amperage rating and a pitch of .156 inches, it is suitable for a wide range of applications. The 74 positions, along with a straight mount orientation, provide versatility in installation. Operating efficiently in temperatures ranging from -40 to 105°C, this green connector guarantees robust connectivity in any setting. Trust in the 337-074-523-803 for high-quality and efficient card edge connections.
