| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-074-500-268 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 74 |
| Number of Rows: | 2 |
| Termination Method: | Wire Hole |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Diallyl Phthalate |
| Row Spacing: | .2 in |
| Number of Positions: | 74 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-074-500-268 |
337-074-500-268
| ICC Number: | EDA337-074-500-268 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-074-500-268 |
| ECAD Model: | |
Specifications
Detailed Description

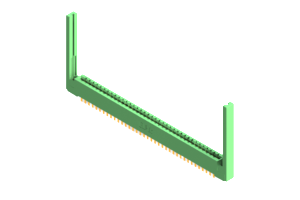

Introducing our Green Card Edge Connector, featuring a durable housing made of UL 94V-0 Thermoplastic Polyester for enhanced safety. With two rows of copper alloy contacts, this connector offers reliable performance with a current rating of 3 A. Boasting 74 positions and a pitch of .156 inches, it provides ample connectivity for your PCB applications. The straight mount orientation and .2-inch row spacing make for easy installation. Operating seamlessly in temperatures ranging from -40 to 105 °C, this connector is a dependable choice for your high-reliability projects.
