| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-074-500-202 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 74 |
| Number of Rows: | 2 |
| Termination Method: | Wire Hole |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Diallyl Phthalate |
| Row Spacing: | .2 in |
| Number of Positions: | 74 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-074-500-202 |
337-074-500-202
| ICC Number: | EDA337-074-500-202 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-074-500-202 |
| ECAD Model: | |
Specifications
Detailed Description

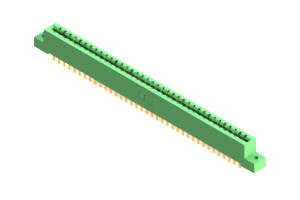

Introducing the 337-074-500-202, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. This two-row connector features 74 positions, allowing for efficient data and power transmission. Crafted from durable UL 94V-0 Thermoplastic Polyester housing and Copper Alloy contacts, it ensures reliable conductivity in demanding environments. With a low pitch of .156 inches and .2-inch row spacing, it offers compact and secure connectivity. Operating flawlessly in temperatures ranging from -40 to 105 °C, this green connector is suitable for a wide range of industries. Upgrade your PCB assembly with the 337-074-500-202 for efficient and durable performance.
