| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-072-542-812 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 72 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 72 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-072-542-812 |
337-072-542-812
| ICC Number: | EDA337-072-542-812 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-072-542-812 |
| ECAD Model: | |
Specifications
Detailed Description

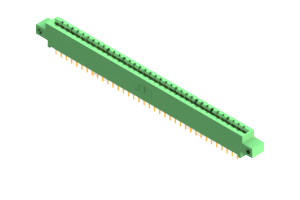

Introducing the 337-072-542-812 Card Edge Connector, a vital component for seamless board-to-board PCB connections in electronic systems. This green connector, constructed from high-quality UL 94V-0 Thermoplastic Polyester, features two rows of durable copper alloy contacts, each with a pitch of .156 inches and a row spacing of .2 inches. With a total of 72 positions, it offers ample connectivity for complex circuitry. Designed for straight mounting orientation, this connector ensures easy installation and secure connections. With an operating temperature range of -40 to 105 °C, it guarantees reliable performance even in harsh environments. Trust in the 337-072-542-812 for efficient and dependable card edge connectivity in your electronic designs.
