| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-070-524-203 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 70 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Through Hole |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 70 |
| Termination Method: | Solder |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-070-524-203 |
337-070-524-203
| ICC Number: | EDA337-070-524-203 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-070-524-203 |
| ECAD Model: | |
Specifications
Detailed Description

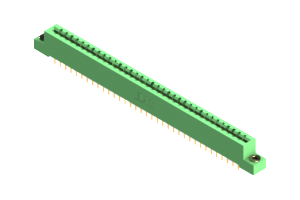

Introducing the 337-070-524-203 Card Edge Connector, a high-performance solution for seamless board-to-board connections. With a vibrant green color, this connector stands out while offering reliable power transmission up to 3 A. Crafted from UL 94V-0 Thermoplastic Polyester, it ensures durability in harsh environments with an operating temperature range of -40 to 105 °C. Featuring two rows of copper alloy contacts and a pitch of .156 inches, it guarantees secure and efficient connectivity across 70 positions. Its straight mount orientation and .2-inch row spacing make installation a breeze. Whether for industrial or commercial applications, this connector delivers uncompromising quality and performance.
