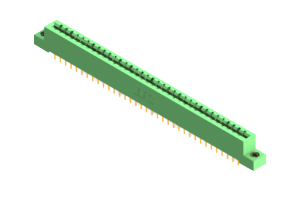

337-070-523-208
Card Edge Connector
The 337-070-523-208, a high-performance Card Edge Connector designed for seamless board-to-board connections. This two-row connector features 70 positions, allowing for efficient data transfer in electronic systems. Crafted from a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures reliable conductivity even in harsh environments. With a low pitch of .156 inches and row spacing of .2 inches, it offers precise and secure connections. Rated for an operating temperature range of -40 to 105°C, it is suitable for a wide range of applications. Whether used in consumer electronics or industrial machinery, this green-colored connector guarantees optimal performance and longevity. Upgrade your connectivity with the 337-070-523-208.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-070-523-208 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 70 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-070-523-208 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
