| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-068-560-802 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 68 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Through Hole |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 68 |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-068-560-802 |
337-068-560-802
| ICC Number: | EDA337-068-560-802 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-068-560-802 |
| ECAD Model: | |
Specifications
Detailed Description

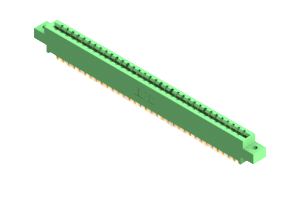

Introducing the 337-068-560-802 Card Edge Connector, a vital component for seamless board-to-board PCB connections in electronic devices. Designed for high reliability, this connector boasts a robust construction with a UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, ensuring optimal performance even in demanding environments. With two rows of 68 positions and a pitch of .156 inches, it offers ample connectivity options for intricate circuitry. The green-colored connector features a straight mount orientation and operates flawlessly in temperatures ranging from -40 to 105 °C. Trust in the 337-068-560-802 for secure and efficient PCB connectivity in your electronic applications.
