337-068-556-802
Card Edge Connector

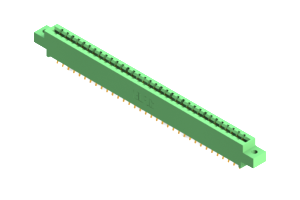

The 337-068-556-802 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This two-row connector features 68 positions, each crafted with precision from a durable copper alloy. The housing, made of UL 94V-0 thermoplastic polyester in a striking green color, ensures robust performance even in demanding environments. With a low 3A amperage and a pitch of .156 inches, this connector is perfect for high-density applications. Its straight mount orientation and wide operating temperature range of -40 to 105°C further enhance its versatility. Trust in the 337-068-556-802 for reliable and efficient connectivity in your electronic designs.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-068-556-802 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 68 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-068-556-802 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
