337-068-541-208

ICC Number:EDA337-068-541-208
Manufacturer:EDAC
Manufacturer Number:337-068-541-208
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Manufacturer:EDAC
Manufacturer Part Number:EDAC 337-068-541-208
Gender:Female
Number of Contacts:68
Number of Rows:2
Termination Method:Wire Wrap
Contact Material:Copper Alloy
Contact Plating:Gold, Nickel, Tin
Pitch:0.156 in
Insulation Material:Thermoplastic Polyester
Current Rating:3 A
Voltage Rating:1800 VAC
Card Thickness:0.062 in
Operating Temperature:-40 to 105 °C
Mounting Type:Screw Mount
SKU:EDA337-068-541-208

Detailed Description

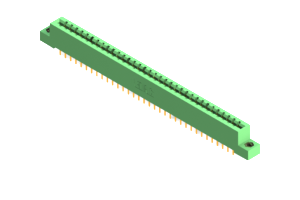

Introducing the 337-068-541-208 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This two-row connector features 68 positions, with a pitch of .156 inches and row spacing of .2 inches, allowing for secure and efficient board-to-board connections. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, this connector is capable of handling up to 3A of current, making it ideal for a wide range of applications. With a sleek green color and straight mount orientation, it not only offers functionality but also adds a professional touch to your designs. Operating flawlessly in temperatures ranging from -40 to 105 °C, the 337-068-541-208 is a dependable choice for your projects.
