| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-068-541-202 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 68 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 68 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-068-541-202 |
337-068-541-202
| ICC Number: | EDA337-068-541-202 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-068-541-202 |
| ECAD Model: | |
Specifications
Detailed Description

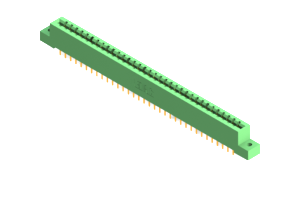

Introducing the 337-068-541-202, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. This two-row connector features 68 positions, with a .156-inch pitch and .2-inch row spacing, ensuring secure and reliable connectivity. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it offers excellent longevity and conductivity, rated for up to 3A. The green-colored connector is suitable for various industries, with an operating temperature range of -40 to 105°C. Whether for commercial or industrial use, the 337-068-541-202 guarantees optimal performance and durability in your PCB assembly projects.
