| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-068-540-808 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 68 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 68 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-068-540-808 |
337-068-540-808
| ICC Number: | EDA337-068-540-808 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-068-540-808 |
| ECAD Model: | |
Specifications
Detailed Description

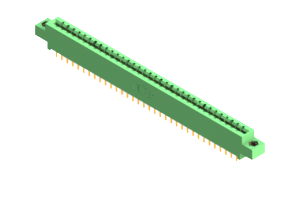

Introducing the 337-068-540-808 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This two-row connector features 68 positions, with a pitch of .156 inches and row spacing of .2 inches, ensuring precise and secure alignment. Crafted from high-quality UL 94V-0 Thermoplastic Polyester, and with copper alloy contacts, it guarantees reliable conductivity even in harsh operating conditions ranging from -40 to 105°C. Its straight mount orientation and green color make it easily identifiable for efficient installation. With an amperage rating of 3A, this connector is suitable for various electronic applications. Trust in the 337-068-540-808 for robust and dependable connectivity in your projects.
