| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-066-558-204 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 66 |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 66 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| SKU: | EDA337-066-558-204 |
337-066-558-204
| ICC Number: | EDA337-066-558-204 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-066-558-204 |
| ECAD Model: | |
Specifications
Detailed Description

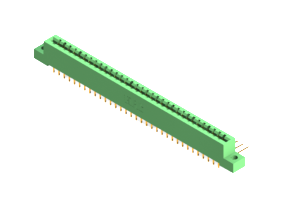

Introducing the 337-066-558-204 Card Edge Connector, a crucial component for seamless board-to-board PCB connections in electronic systems. This green connector, boasting a durable UL 94V-0 Thermoplastic Polyester housing, features two rows of high-performance copper alloy contacts, each accommodating 66 positions with a pitch of .156 inches. Designed for right-angle mounting, it ensures efficient space utilization on PCBs. With an amperage rating of 3A and operating seamlessly in a wide temperature range from -40 to 105°C, this RoHS-compliant connector guarantees reliable performance in diverse applications, from consumer electronics to industrial machinery. Upgrade your connectivity solutions with the 337-066-558-204 for optimal performance and durability.
