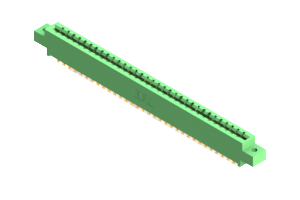

337-066-555-802
Card Edge Connector
The 337-066-555-802 Card Edge Connector, a crucial component for seamless board-to-board PCB connections. This green connector, crafted from UL 94V-0 Thermoplastic Polyester, boasts high durability and reliability in various operating environments. With two rows of copper alloy contacts and a total of 66 positions, it ensures efficient signal transmission with a low amperage of 3A. The .156-inch pitch and .2-inch row spacing allow for precise alignment, while its straight mount orientation offers easy installation. Rated for an operating temperature range of -40 to 105°C, this connector is suitable for a wide range of applications, making it a must-have for any PCB assembly project.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-066-555-802 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 66 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-066-555-802 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
